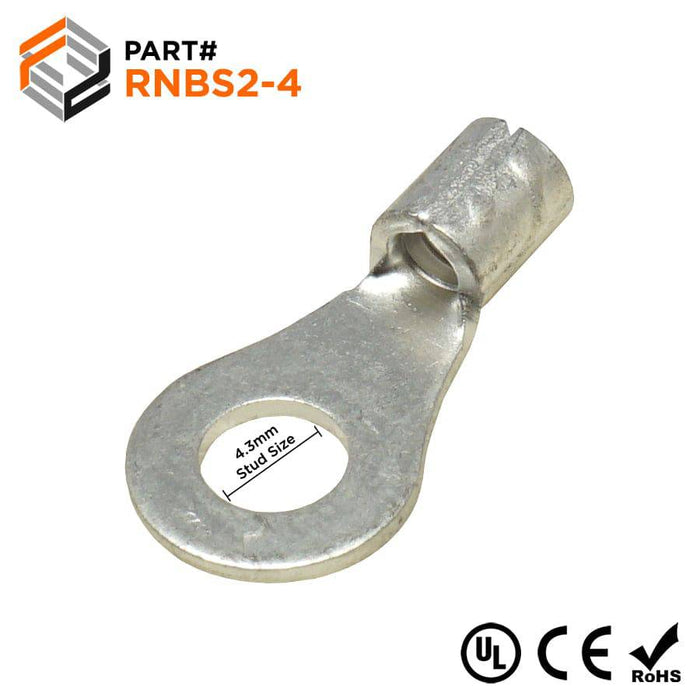

RNBS2-4 - Non Insulated Ring Terminal - 16-14AWG
Original price
$7.46
-
Original price
$7.46
Original price
$7.46
$7.46
-
$7.46
Current price
$7.46
SKU RNBS2-4
Availability:
in stock, ready to be shipped
Ring tongue design offers a tight and secure connection in high vibration areas, the non insulated crimp joint meets industry standards with internal barrel serrations for good wire contact and maximum tensile strength.
Product Drawing:
Cembre: S2.5-M4
Eclipse: 902-411-10
Panduit: P14-8R-C
Tyco AMP: 324955
| Wire Range: | 16-14 AWG |
| T: | 0.03" (0.8mm) |
| L: | 0.57" (14.4mm) |
| F: | 0.25" (6.3mm) |
| E: | 0.19" (4.8mm) |
| W: | 0.29" (6.6mm) |
| D: | 0.16" (4.1mm) |
| D1: | 0.09" (2.3mm) |
| D2: | 0.17" (4.3mm) |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | #8 Stud |
| Temperature Rating: | 150oC - 600 Volts |
| Max Electrical Rating: | 30 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:Cembre: S2.5-M4
Eclipse: 902-411-10
Panduit: P14-8R-C
Tyco AMP: 324955
