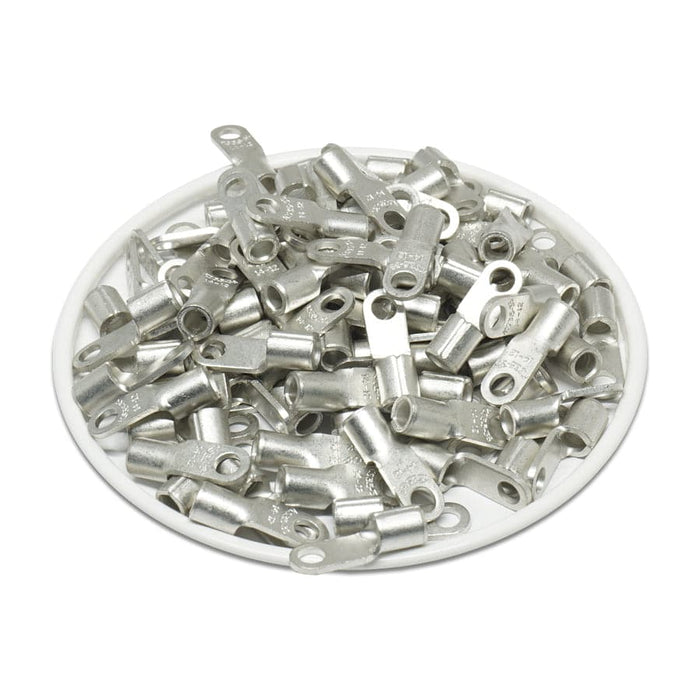

RNBS3-3.2 - Non Insulated Ring Terminal 14-12AWG

$13.69
SKU RNBS3-32
Piece Quantity
Ring terminals offer a tight and secure connection in high vibration areas. The brazed seam construction protects the terminal's barrel from splitting when crimped

Wire Range: 14-12 AWG
T: 0.04" (1.0mm)
L: 0.66" (16.8mm)
F: 0.32" (8.0mm)
E: 0.24" (6.0mm)
W: 0.22" (5.5mm)
D: 0.20" (5.1mm)
D1: 0.11" (2.9mm)
D2: 0.13" (3.2mm)
Terminal Material: Tin-Plated Copper
Stud Size: #4 Stud
Temperature Rating: 150oC - 600 Volts
Max Electrical Rating: 35 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:
