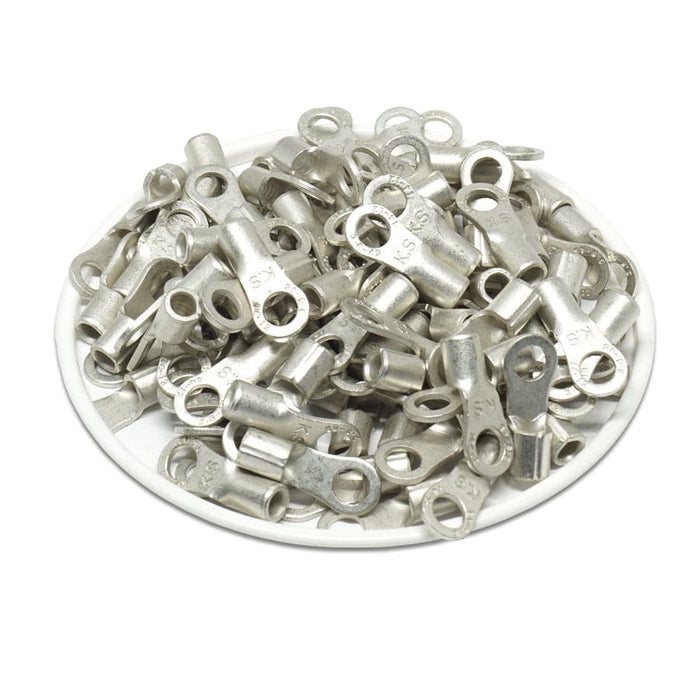

RNBS3-4 - Non Insulated Ring Terminal 14-12AWG
Original price
$15.40
-
Original price
$15.40
Original price
$15.40
$15.40
-
$15.40
Current price
$15.40
SKU RNBS3-4
Availability:
in stock, ready to be shipped
Ring terminals offer a tight and secure connection in high vibration areas. The brazed seam construction protects the terminal's barrel from splitting when crimped
Product Drawing:
Tyco AMP: 321827
| Wire Range: | 14-12 AWG |
| T: | 0.04" (1.0mm) |
| L: | 0.69" (17.6mm) |
| F: | 0.32" (8.0mm) |
| E: | 0.24" (6.0mm) |
| W: | 0.28" (7.2mm) |
| D: | 0.20" (5.1mm) |
| D1: | 0.11" (2.9mm) |
| D2: | 0.17" (4.3mm) |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | #8 Stud |
| Temperature Rating: | 150oC - 600 Volts |
| Max Electrical Rating: | 35 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:Tyco AMP: 321827
