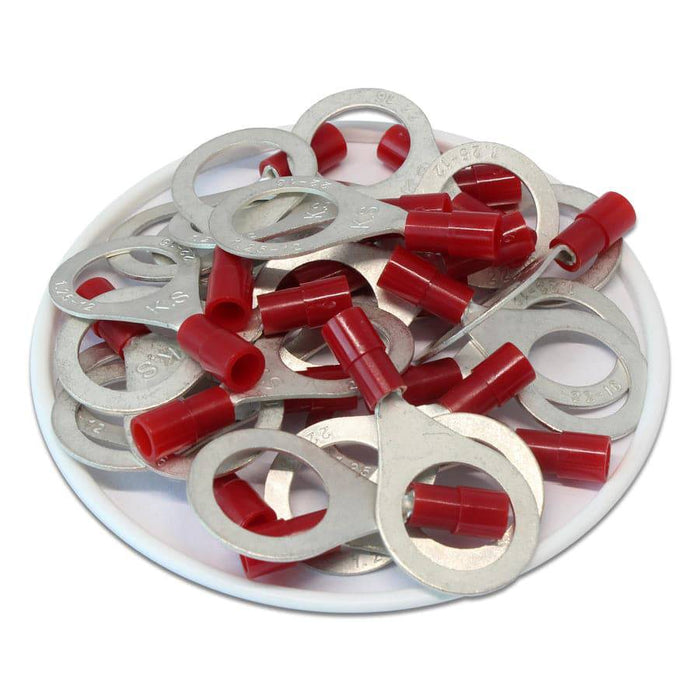

22-16 AWG Nylon Insulated Ring Terminals, 1/2" Stud, Butted Seam, 100 Pieces - RNY1-12

Original price $21.34 - Original price $21.34
Original price
$21.34
$21.34 - $21.34
Current price $21.34
SKU RNY1-12
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
true

NYLON INSULATED RING TERMINALS

Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Nylon Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.

Application Info:

Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.


Dimensions & Features:

T: 0.75mm (0.03")
L: 36.4mm (1.43")
F: 16mm (0.63")
E: 11mm (0.43")
W: 19.6mm (0.77")
D 4mm (0.16")
D1: 1.7mm (0.07")
D2: 13mm (0.51")
Wire Range: 22-16 AWG
Color: Red
Terminal Material: Tin-Plated Copper
Terminal Insulation: Nylon
Max Electrical Rating: 600 Volts (105oC)
Seam: Butted
Stud Size: 1/2"
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:


Cross References

Cross References:

Cembre: RKY-M 12
Thomas Betts: RA18-12
Tyco AMP: 328975


Documents

Click to view product spec sheet:
