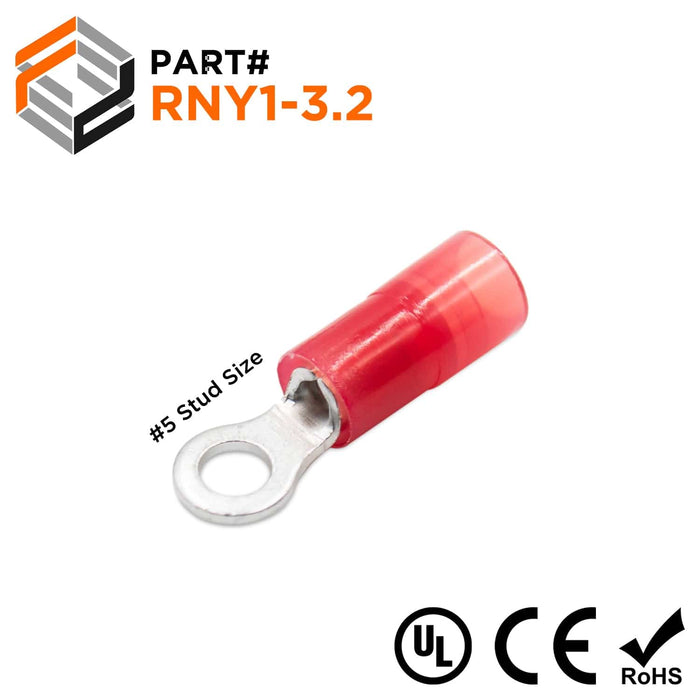

RNY1-3.2 Nylon Ring Terminals - Standard Crimp 22-16AWG - Stud #4

$6.06
SKU RNY1-32
Pack Quantity

Ring terminals offer a tight and secure connection in high vibration areas, Nylon insulation sleeve is securely fastened to metal insulation grip sleeve, providing protection to crimp joint. Color coded according to industry standards Internal barrel serrations offer good wire contact and maximum tensile strength.

Dimensions & Features:

Wire Range: 22-16AWG
Stud Size: #4
Color: Red
T: 0.75mm (0.03")
L: 18.5mm (0.73")
F: 5mm (0.19")
E: 11mm (0.43")
W: 5.5mm (0.21")
D 4mm (0.16")
D1: 1.7mm (0.07")
D2: 3.2mm (0.13")
Terminal Material: Tin-Plated Copper
Terminal Insulation: Nylon
Max Electrical Rating: 600 Volts (105oC)
Seam: Butted
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes



Technical Drawing:

Cross References

Cross Reference Parts:
3M: MNG18-4R/SK
Cembre: RKY-M 3
Panduit: PN18-4R-C
Thomas Betts: RA18-4
Tyco AMP: 320553

Documents

Click to view product spec sheet:
