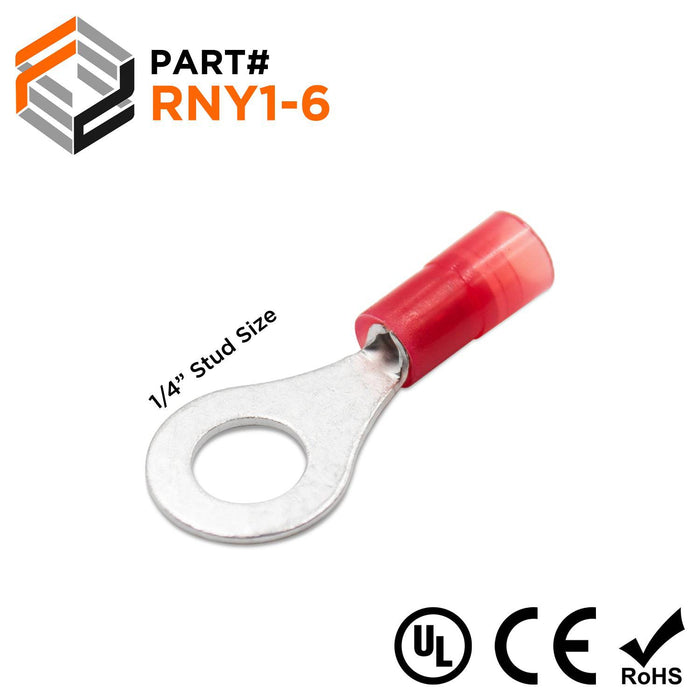

22-16 AWG Nylon Insulated Ring Terminals, 1/4" Stud, Butted Seam, 100 Pieces - RNY1-6
Quantity: 100 Pieces
NYLON INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Nylon Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
Dimensions & Features:
| T: | 0.75mm (0.03") |
| L: | 27.8mm (1.09") |
| F: | 11mm (0.43") |
| E: | 11mm (0.43") |
| W: | 11.6mm (0.46") |
| D | 4mm (0.16") |
| D1: | 1.7mm (0.07") |
| D2: | 6.4mm (0.25") |
| Wire Range: | 22-16 AWG |
| Color: | Red |
| Terminal Material: | Tin-Plated Copper |
| Terminal Insulation: | Nylon |
| Max Electrical Rating: | 600 Volts (105oC) |
| Seam: | Butted |
| Stud Size: | 1/4" |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross References:
3M: MNG18-14R/SK
Cembre: RKY-M 6/1
Elecdirect: A6A14S
McMaster-Carr: 7113K732
Panduit: PN18-14R-C
Thomas Betts: RA18-14
Tyco AMP: 320571
