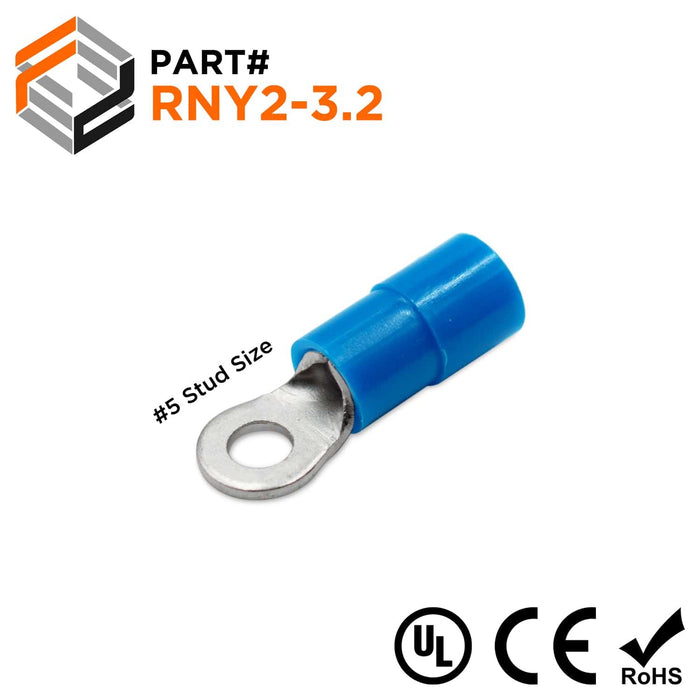

16-14 AWG Nylon Insulated Ring Terminals, #4 Stud, Butted Seam, 100 Pieces - RNY2-32
NYLON INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Nylon Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
Dimensions & Features:
| T: | 0.8mm (0.03") |
| L: | 18.8mm (0.74") |
| F: | 4.8mm (0.19") |
| E: | 11mm (0.43") |
| W: | 6.6mm (0.26") |
| D | 4.5mm (0.18") |
| D1: | 2.3mm (0.09") |
| D2: | 3.2mm (0.13") |
| Wire Range: | 16-14 AWG |
| Color: | Blue |
| Terminal Material: | Tin-Plated Copper |
| Terminal Insulation: | Nylon |
| Max Electrical Rating: | 600 Volts (105oC) |
| Seam: | Butted |
| Stud Size: | #4 Stud |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross References:
3M: MNG14-10R/LX
Cembre: BKY-M 5
Panduit: PN14-10R-C
Thomas Betts: RB14-10
