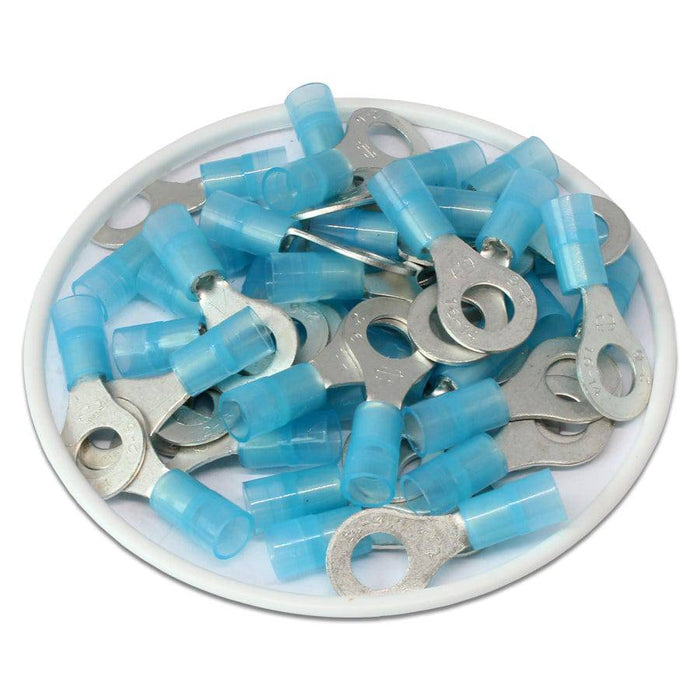

RNY2-6 - Nylon Insulated Ring Terminals - 16-14 AWG - 1/4" Stud
Original price
$13.68
-
Original price
$13.68
Original price
$13.68
$13.68
-
$13.68
Current price
$13.68
SKU RNY2-6
Availability:
in stock, ready to be shipped
Ring tongue design offers a tight and secure connection in high vibration areas, Nylon insulation sleeve is securely fastened to metal insulation grip sleeve, providing protection to crimp joint. Color coded according to industry standards Internal barrel serrations offer good wire contact and maximum tensile strength
Dimensions & Features:
Product Drawing:
3M: MNG14-10RK
Cembre: BKY-M 6/1
Elecdirect: R6B14S
McMaster-Carr: 7113K456
Panduit: PN14-14R-C
Thomas Betts: RB14-14
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Stud Size: | 1/4" Stud |
| Color: | Blue |
| T: | 0.8mm (.03") |
| L: | 27.8mm (1.09") |
| F: | 11mm (0.43") |
| E: | 11mm (0.43") |
| W: | 12mm (0.47") |
| D: | 4.5mm (0.18") |
| D1: | 2.3mm (.09") |
| D2: | 6.4mm (0.25") |
| Temperature Rating: | 105°C |
| Voltage Rating: | 600 Volts |
| Max Electrical Current: | 30AMP |
| Terminal Insulation: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:3M: MNG14-10RK
Cembre: BKY-M 6/1
Elecdirect: R6B14S
McMaster-Carr: 7113K456
Panduit: PN14-14R-C
Thomas Betts: RB14-14
