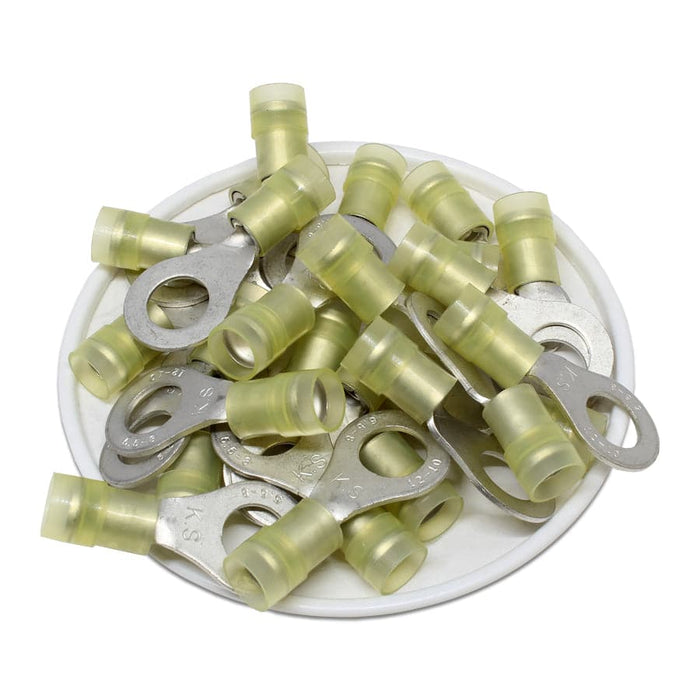

RNYD5-8 Nylon Ring Terminals - Double Crimp 12-10AWG
Original price
$17.46
-
Original price
$17.46
Original price
$17.46
$17.46
-
$17.46
Current price
$17.46
SKU RNYD5-8
Quantity: 50 Pieces
Availability:
in stock, ready to be shipped
Ring tongue design offers a tight and secure connection in high vibration areas, Nylon insulation sleeve is securely fastened to metal insulation grip sleeve, providing protection to crimp joint. Color coded according to industry standards Internal barrel serrations offer good wire contact and maximum tensile strength.
Dimensions & Features:
| Wire Size: |
12-10 AWG |
| Stud Size: | 5/16" Stud |
| Color: | Yellow |
| T: | 1.0mm (.04") |
| L: | 34mm (1.34") |
| F: | 13.3mm (0.51") |
| E: | 13mm (0.51") |
| W: | 15mm (0.59") |
| D: | 7.0mm (0.28") |
| D1: | 3.4mm (0.13") |
| D2: | 8.4mm (0.33") |
| Terminal Insulation: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| Max Voltage Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 50AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
