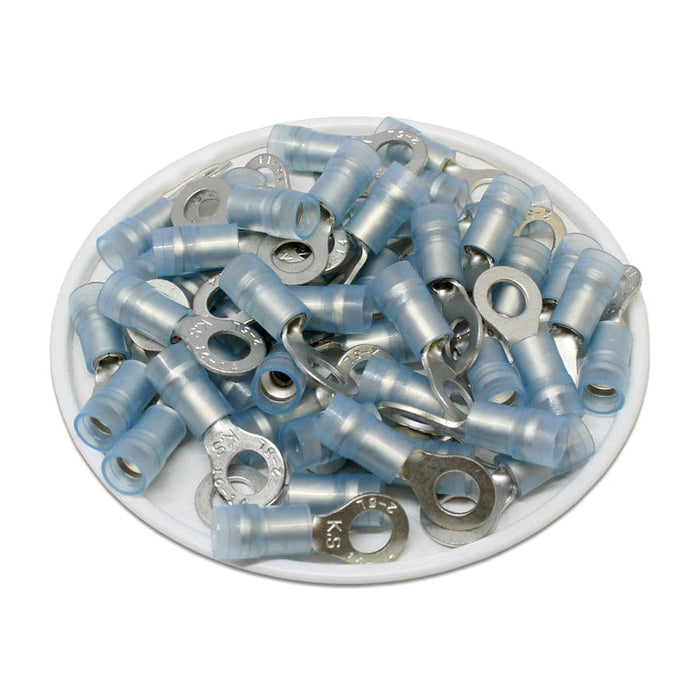

RNYDL2-5 - Double Crimp Nylon Ring Terminals - 16-14 AWG - #10 Stud

Original price $12.48 - Original price $12.48
Original price
$12.48
$12.48 - $12.48
Current price $12.48
SKU RNYDL2-5
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
Ring tongue design offers a tight and secure connection in high vibration areas, Nylon insulation sleeve is securely fastened to metal insulation grip sleeve, providing protection to crimp joint. Color coded according to industry standards Internal barrel serrations offer good wire contact and maximum tensile strength.

Dimensions & Features:

Wire Size: 16-14 AWG
Stud Size: #10 Stud
Color: Blue
T: 0.8mm (0.03")
L: 22.8mm (0.89")
F: 7.3mm (0.29")
E: 11mm (0.43")
W: 9.5mm (0.37")
D: 5.2mm (0.21")
D1: 2.3mm (0.09")
D2: 5.3mm (0.21")
Terminal Insulation: Nylon
Terminal Material: Tin-Plated Copper
Max Voltage Rating: 105°C - 600 Volts
Max Electrical Current: 30AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
