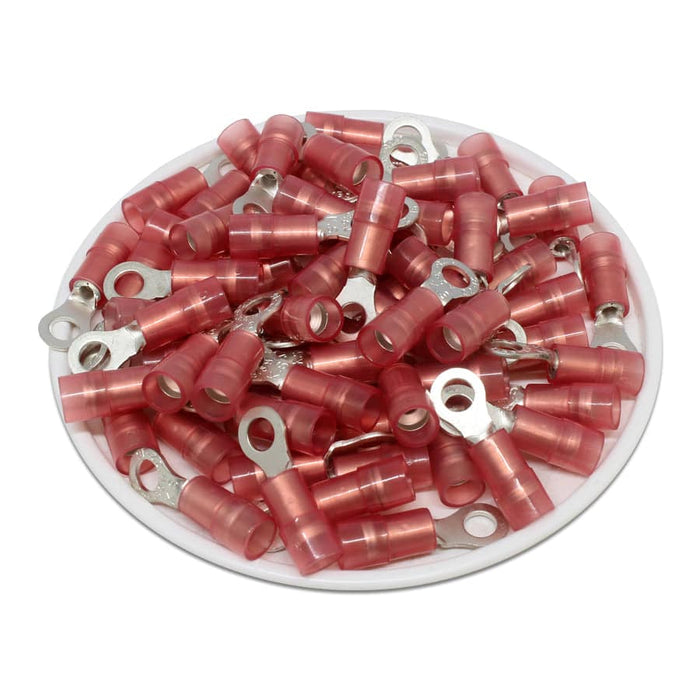

RNYDM1-3.7 - Double Crimp Nylon Insulated Ring Terminals - 22-16 AWG - #6 Stud

Original price $10.22 - Original price $10.22
Original price
$10.22
$10.22 - $10.22
Current price $10.22
SKU RNYDM1-37
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces

Ring tongue design offers a tight and secure connection in high vibration areas, Nylon insulation sleeve is securely fastened to metal insulation grip sleeve, providing protection to crimp joint. Color coded according to industry standards Internal barrel serrations offer good wire contact and maximum tensile strength.

Dimensions & Features:

Wire Range: 22-16AWG
Stud Size: #6 Stud
Color: Red
T: 0.75mm (0.03")
L: 20.4mm (0.80")
F: 6.3mm (0.43")
E: 11mm (0.43")
W: 6.6mm (0.26")
D 4.5mm (0.177")
D1: 1.7mm (0.07")
D2: 3.7mm (0.13")
Terminal Material: Tin-Plated Copper
Terminal Insulation: Nylon
Max Electrical Rating: 600 Volts (105oC)
Seam: Butted
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:
