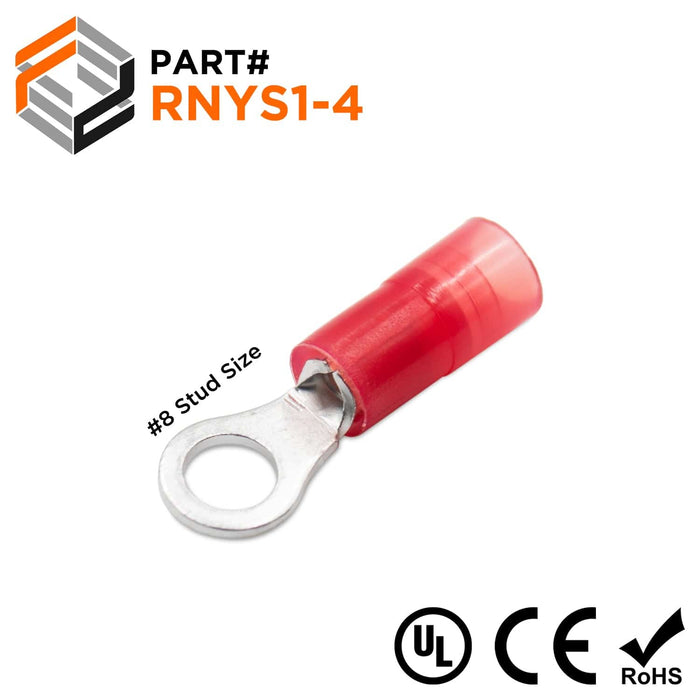

RNYS1-4 Nylon Ring Terminals - Standard Crimp 22-16AWG - Stud #8

Original price $6.72 - Original price $6.72
Original price
$6.72
$6.72 - $6.72
Current price $6.72
SKU RNYS1-4
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces

Ring tongue design offers a tight and secure connection in high vibration areas, Nylon insulation sleeve is securely fastened to metal insulation grip sleeve, providing protection to crimp joint. Color coded according to industry standards Internal barrel serrations offer good wire contact and maximum tensile strength.

Dimensions & Features:

Wire Range: 22-16AWG
Stud Size: #8
Color: Red
T: 0.75mm (0.03")
L: 20.4mm (0.80")
F: 6.3mm (0.24")
E: 11mm (0.43")
W: 6.6mm (0.26")
D 4mm (0.16")
D1: 1.7mm (0.07")
D2: 4.3mm (0.17")
Seam: Butted
Terminal Material: Tin-Plated Copper
Terminal Insulation: Nylon
Max Electrical Rating: 600 Volts (105oC)
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:

Cross References

Cross Reference Parts:

Allied
: 70091851
Cembre: RKY-M 4
Leidos: 20-22271
McMaster-Carr: 7113K731
Newark: 65F721
Panduit: PN18-8R-C
Thomas Betts: RA18-8
Tyco AMP: 320554
