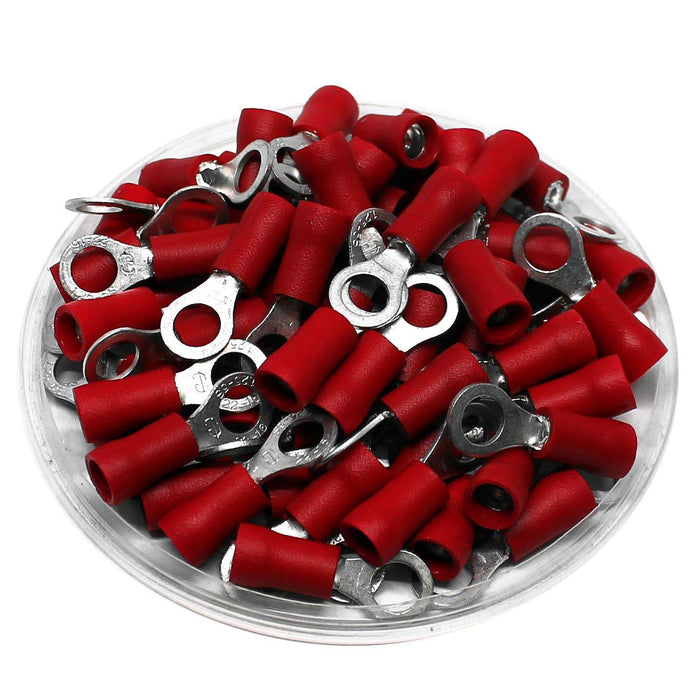

22-16 AWG PVC Vinyl Insulated Ring Terminals, #10 Stud, Butted Seam, 100 Pieces - RV1-5
Original price
$7.32
-
Original price
$7.32
Original price
$7.32
$7.32
-
$7.32
Current price
$7.32
SKU RV1-5
Availability:
in stock, ready to be shipped
VINYL (PVC) INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
Dimensions & Features:
| T: | 0.75mm (0.03") |
| L: | 20.8mm (0.82") |
| F: | 7mm (0.28") |
| E: | 10mm (0.39") |
| W: | 8mm (0.32") |
| D | 4mm (0.16") |
| D1: | 1.7mm (0.07") |
| D2 | 5.3mm (0.21") |
| Color: | Red |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Vinyl |
| Stud Size: | #10 |
| Seam: | Butted |
| Temperature Rating: | 105oC |
| Voltage Rating: | 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross References:3M: MVU18-10RX
Phoenix Contact: BM-00125
Burndy: TP16-10
Cembre: RVF-R 10
Eclipse: 902-439-10
Elecdirect: R4A10
McMaster-Carr: 7113K98
Panduit: PV18-10R-CY
Thomas Betts: 18RA-10
Tyco AMP: 32952
Weidmuller: 1492220000
