12 to 10 AWG PVC Vinyl Insulated Ring Terminals, 1/2" Stud, Butted Seam, 50 Pieces - RV5-12
Original price
$15.08
-
Original price
$15.08
Original price
$15.08
$15.08
-
$15.08
Current price
$15.08
SKU RV5-12
Availability:
in stock, ready to be shipped

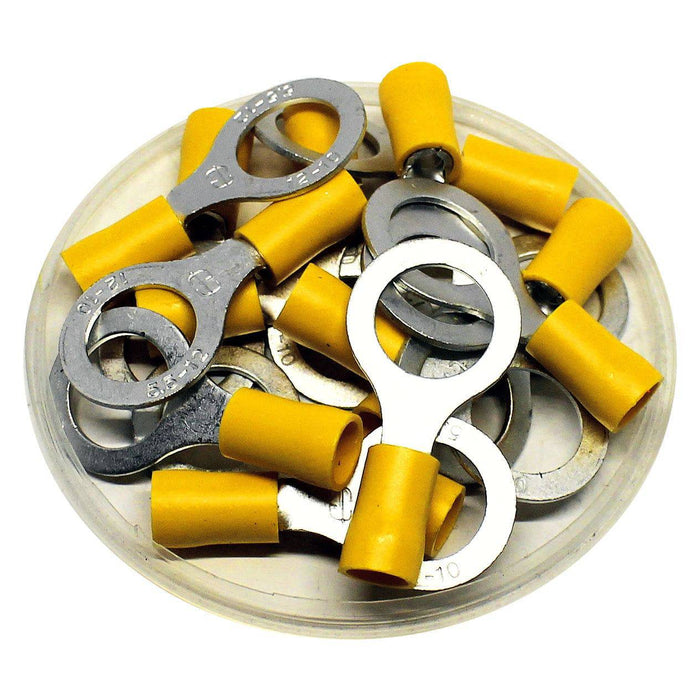

VINYL (PVC) INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| T: | 1mm (0.04") |
| L: | 38.6mm (1.52") |
| F: | 16mm (0.63") |
| E: | 13mm (0.51") |
| W: | 19.2mm (0.76") |
| D | 6.4mm (0.25") |
| D1: | 3.4mm (0.13") |
| D2: | 13mm (0.51") |
| Stud Size: | 1/2" |
| Color: | Yellow |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Vinyl |
| Max Electrical Rating: | 600 Volts (105oC) |
| Seam: | Butted |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross References:Cembre: YVF-R 12
McMaster-Carr: 7113K82
Tyco AMP: 34837
Documents
Click to view product spec sheet:
Videos
Click here to check out our YouTube channel:
