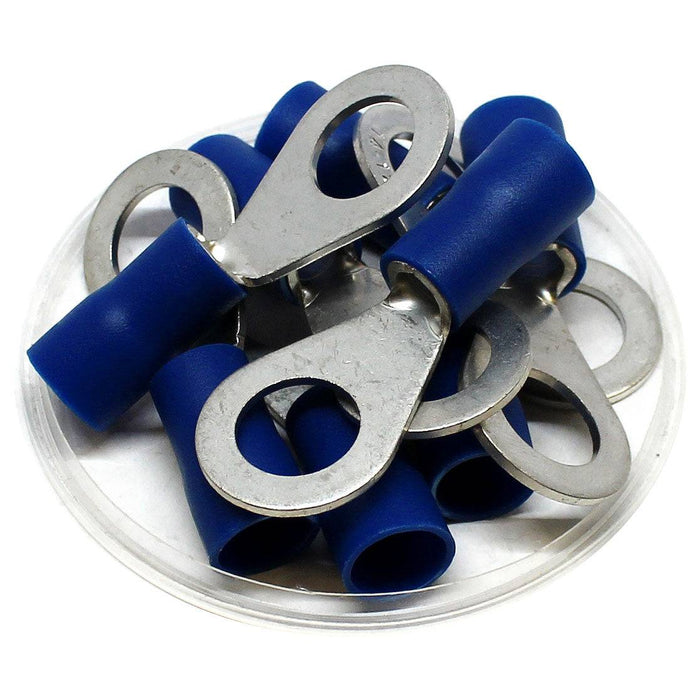

6 AWG PVC Vinyl Insulated Ring Terminals, 1/2" Stud, Brazed Seam, 50 Pieces - RVB14-12

Original price $30.20 - Original price $30.20
Original price
$30.20
$30.20 - $30.20
Current price $30.20
SKU RVB14-12
Availability:
in stock, ready to be shipped
Pack Quantity: 50 Pieces

VINYL (PVC) INSULATED RING TERMINALS

Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.

Application Info:

Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.


Dimensions & Features:

Wire Size: 6 AWG
Stud Size: 1/2" Stud
Seam: Brazed
Color: Blue
T: 1.5mm (.06")
L: 53mm (2.1")
F: 19.8mm (0.78")
E: 22.5mm (0.89")
W: 22mm (0.89")
D: 10.5mm (0.41")
D1: 5.8mm (0.23")
D2: 13mm (0.51")
Terminal Insulation: Vinyl
Terminal Material: Tin-Plated Copper
Max Voltage Rating: 105°C - 600 Volts
Max Electrical Current: 95AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
Thomas Betts: REV757
Tyco AMP: 52350
