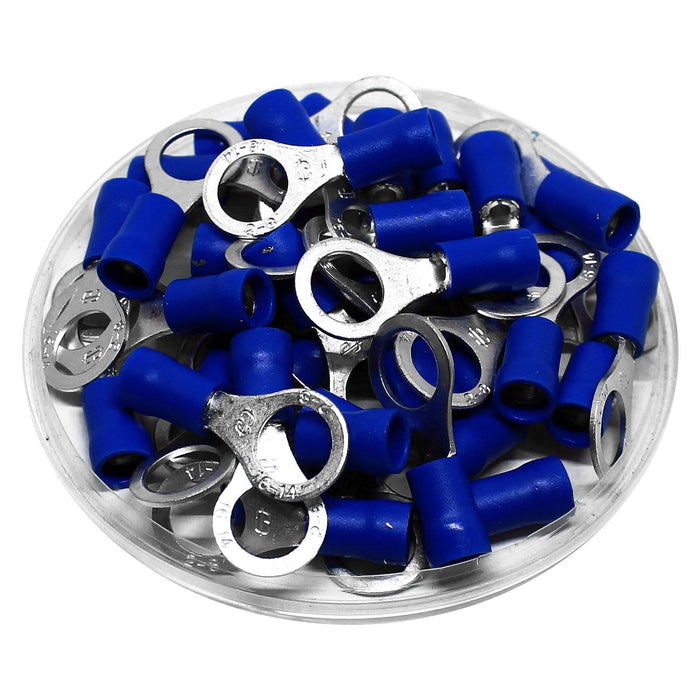

16 to 14 AWG PVC Vinyl Insulated Ring Terminals, 5/16" Stud, Brazed Seam, 100 Pieces - RVB2-8

Original price $12.25 - Original price $12.25
Original price
$12.25
$12.25 - $12.25
Current price $12.25
SKU RVB2-8
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces

VINYL (PVC) INSULATED RING TERMINALS

Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.

Application Info:

Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.


Dimensions & Features:

Wire Size: 16-14 AWG
Stud Size: 5/16"
Color: Blue
T: 0.8mm (0.03")
L: 26.8mm (1.05")
F: 11mm (0.43")
E: 10mm (0.40")
W: 12mm (0.47")
D 4.5mm (0.18")
D1: 2.3mm (0.09")
D2: 8.4mm (0.33")
Terminal Material: Tin-Plated Copper
Insulation Material: Vinyl
Max Electrical Rating: 600 Volts (105oC)
Seam: Brazed
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
