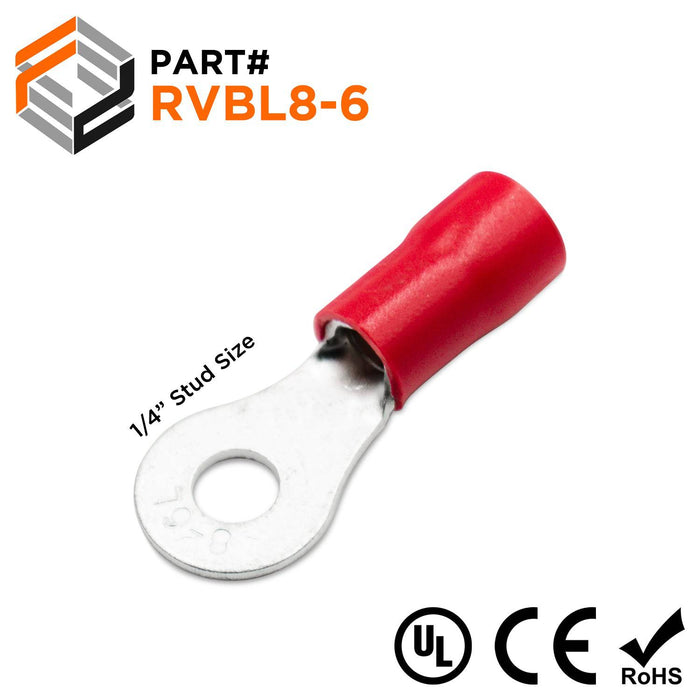

8 AWG PVC Vinyl Insulated Ring Terminals, 1/4" Stud, Brazed Seam, 50 Pieces - RVBL8-6
Original price
$18.63
-
Original price
$18.63
Original price
$18.63
$18.63
-
$18.63
Current price
$18.63
SKU RVBL8-6
Availability:
in stock, ready to be shipped
VINYL (PVC) INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
Dimensions & Features:
| Wire Size: | 8 AWG |
| Stud Size: | 1/4" Stud |
| Seam: | Brazed |
| Color: | Red |
| T: | 1.2mm (0.05") |
| L: | 37.5mm (1.48") |
| F: | 13.5mm (0.53") |
| E: | 17.5mm (0.69") |
| W: | 15mm (0.59") |
| D: | 8.0mm (0.31") |
| D1: | 4.5mm (0.18") |
| D2: | 6.4mm (0.25") |
| Terminal Insulation: | Vinyl |
| Terminal Material: | Tin-Plated Copper |
| Max Voltage Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 70AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
