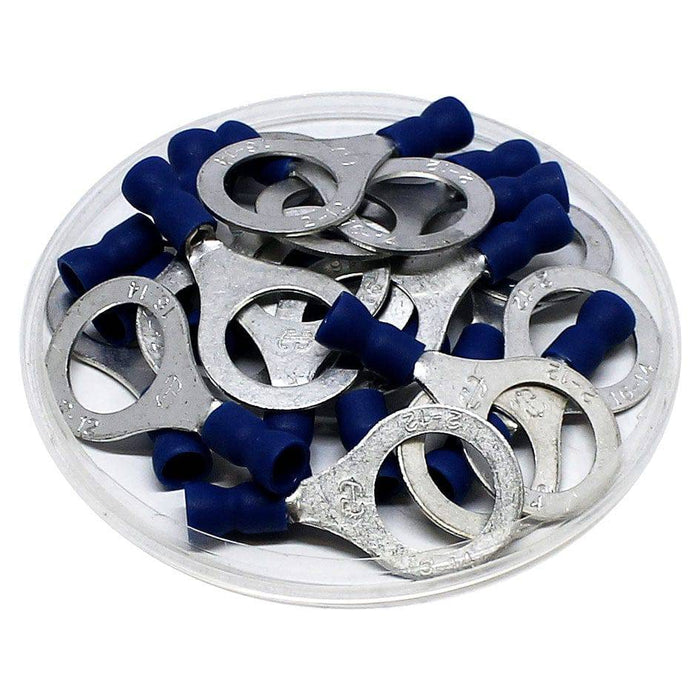

RVE2-10 - Easy Entry Insulated Ring Terminal - Butted Seam - 16-14AWG

Pack Quantity

Ring terminals offer a tight and secure connection in high vibration areas. The insulated sleeve is securely fastened to metal grip sleeve providing potection to the crimp joint. Color coded according to industry standards.

Dimensions & Features:

T: 0.8mm (0.03")
L: 32mm (1.3")
F: 13.9mm (0.43")
E: 11.5mm (0.44")
W: 13.6mm (0.54")
D 4.5mm (0.34")
D1: 2.3mm (0.09")
D2: 10.5mm (0.54")
Stud Size: 3/8"
Color: Blue
Terminal Material: Tin-Plated Copper
Insulation Material: Vinyl
Max Electrical Rating: 600 Volts (105oC)
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:

Cross References

Cross References:

Tyco AMP: 34164
