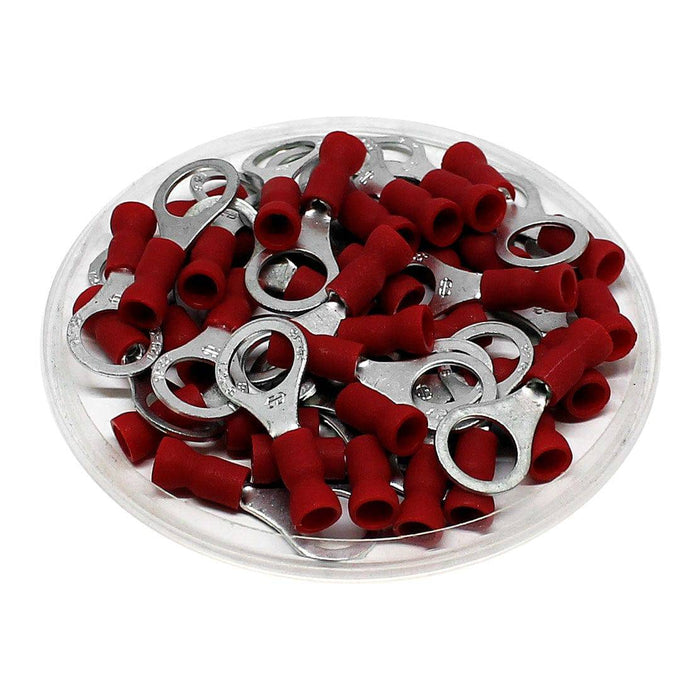

22 to 16 AWG Vinyl Insulated Easy Entry Ring Terminals, #10 Stud, Butted Seam, 100 Pieces - RVEL1-5

Original price $6.95 - Original price $6.95
Original price
$6.95
$6.95 - $6.95
Current price $6.95
SKU RVEL1-5
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
true

VINYL INSULATED RING TERMINALS

Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.

Application Info:

Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.

Dimensions & Features:

Wire Size: 22-16 AWG
Stud Size: #10 Stud
Color: Red
T: 0.75mm (0.03")
L: 23mm (0.91")
F: 8.5mm (0.3")
E: 10.5mm (0.44")
W: 9.8mm (0.39")
D 4.3mm (0.17")
D1: 1.7mm (0.06")
D2: 5.3mm (0.21")
Terminal Material: Tin-Plated Copper
Insulation Material: Vinyl
Max Electrical Rating: 600 Volts (105°C)
Seam: Butted
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes
