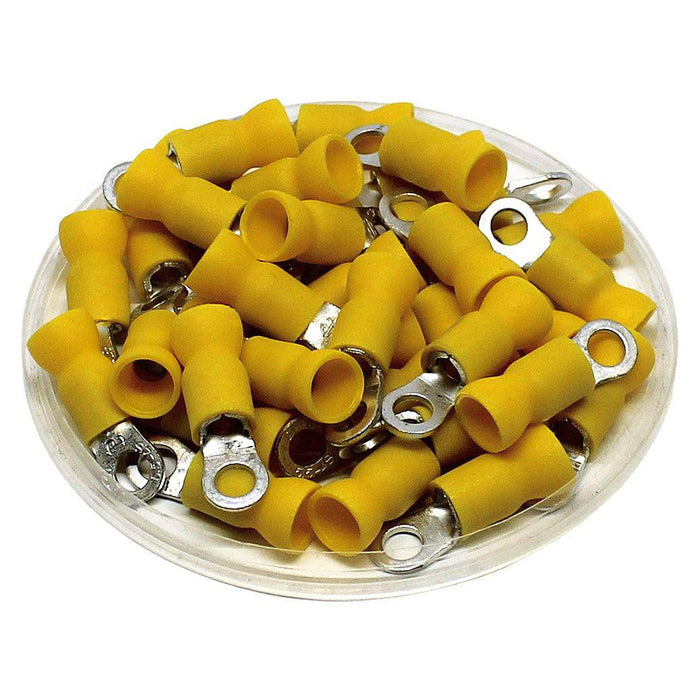

12 to 10 AWG Vinyl Insulated Easy Entry Ring Terminals, #8 Stud, Butted Seam, 50 Pieces - RVES5-4
Original price
$7.38
-
Original price
$7.38
Original price
$7.38
$7.38
-
$7.38
Current price
$7.38
SKU RVES5-4
Availability:
in stock, ready to be shipped
VINYL INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Stud Size: | #8 |
| Color: | Yellow |
| T: | 1mm (0.04") |
| L: | 23.2mm (0.91") |
| F: | 5.9mm (0.23") |
| E: | 13.8mm (0.54") |
| W: | 7.2mm (0.28") |
| D | 6.3mm (0.25") |
| D1: | 2.3mm (0.09") |
| D2: | 4.25mm (0.17") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Vinyl |
| Seam: | Butted |
| Max Electrical Rating: | 600 Volts (105°C) |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
