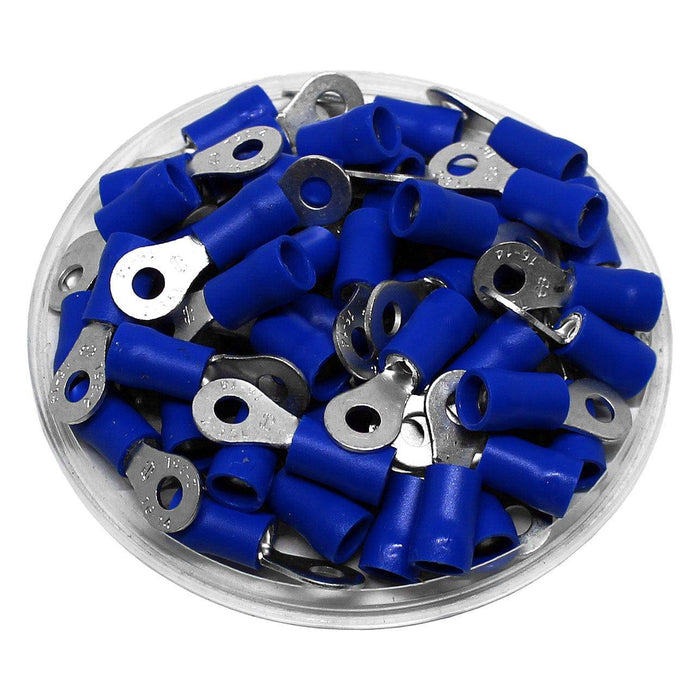

16-14 AWG PVC Vinyl Insulated Ring Terminals, #6 Stud, Butted Seam, 100 Pieces - RVS2-37
Original price
$7.59
-
Original price
$7.59
Original price
$7.59
$7.59
-
$7.59
Current price
$7.59
SKU RVS2-37
Availability:
in stock, ready to be shipped
VINYL (PVC) INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
Dimensions & Features:
| T: | 0.8mm (0.03") |
| L: | 17.8mm (0.70") |
| F: | 4.8mm (0.19") |
| E: | 10mm (0.9") |
| W: | 6.6mm (0.26") |
| D | 4.5mm (0.18") |
| D1: | 2.3mm (0.09") |
| D2: | 3.7mm (0.15") |
| Wire Size: | 16-14 AWG |
| Stud Size: | #6 |
| Seam: | Butted |
| Color: | Blue |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Vinyl |
| Max Electrical Rating: | 600 Volts (105oC) |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross References:3M: MVU14-6R/SK
Burndy: TP14-6
Cembre: BVF-R 6
Eclipse: 902-441-10
Elecdirect: R4B6
McMaster-Carr: 7113K23
Panduit: PV14-6R-C
Thomas Betts: 14RB-6
Tyco AMP: 34158
Weidmuller: 1492270000
