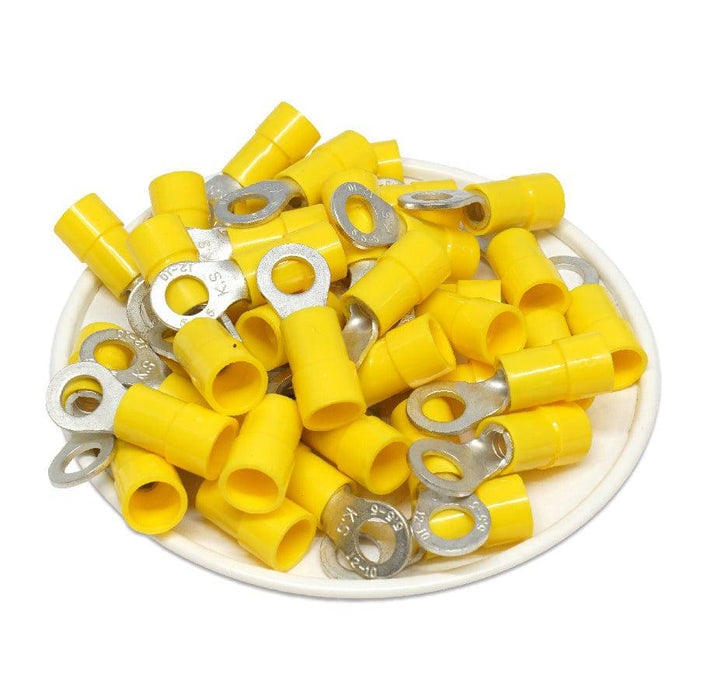

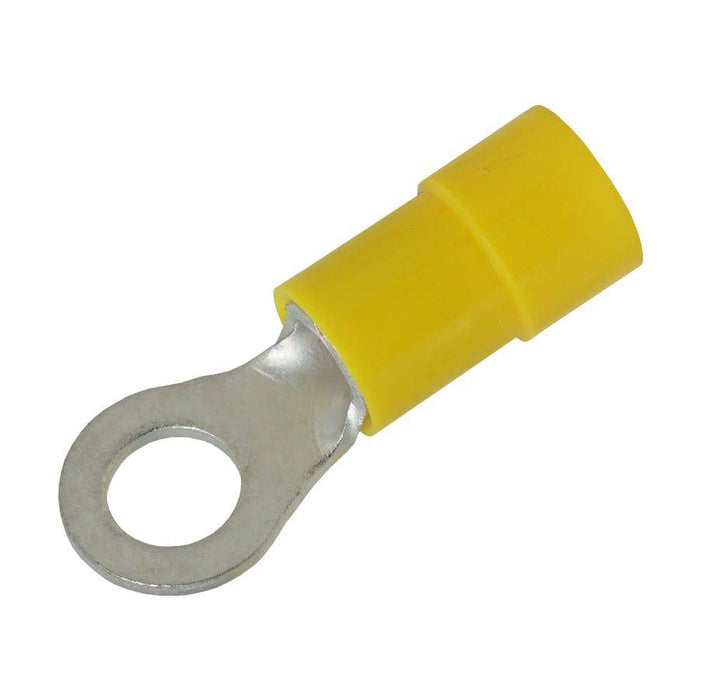

12 to 10 AWG Vinyl Insulated Molded Easy Entry Ring Terminals, #10 Stud, Butted Seam, 50 Pieces - RVY5-5
Original price
$8.84
-
Original price
$8.84
Original price
$8.84
$8.84
-
$8.84
Current price
$8.84
SKU RVY5-5
Availability:
in stock, ready to be shipped
VINYL INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Stud Size: | #10 Stud |
| Color: | Yellow |
| T: | 1.0mm (0.04") |
| L: | 26mm (1.024") |
| F: | 8.3mm (0.327") |
| E: | 13mm (0.512") |
| W: | 9.5mm (0.374") |
| D: | 6.4mm (0.252") |
| D1: | 3.4mm (0.134") |
| D2: | 5.3mm (0.209") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Vinyl |
| Max Electrical Rating: | 600 Volts (105oC) |
| Seam: | Butted |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
