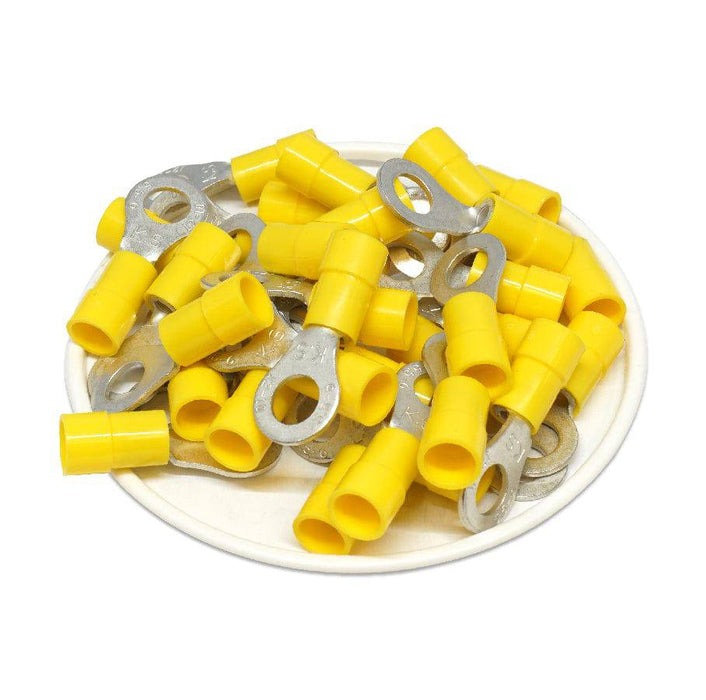

12 to 10 AWG Vinyl Insulated Molded Easy Entry Ring Terminals, 1/4" Stud, Butted Seam, 50 Pieces - RVY5-6
Original price
$10.56
-
Original price
$10.56
Original price
$10.56
$10.56
-
$10.56
Current price
$10.56
SKU RVY5-6
Availability:
in stock, ready to be shipped
VINYL INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Stud Size: | 1/4" Stud |
| Color: | Yellow |
| T: | 1.0mm (0.04") |
| L: | 29.5mm (1.16") |
| F: | 10.5mm (0.413") |
| E: | 13mm (0.512") |
| W: | 12mm (0.472") |
| D: | 6.4mm (0.252") |
| D1: | 3.4mm (0.134") |
| D2: | 6.4mm (0.252") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Vinyl |
| Max Electrical Rating: | 600 Volts (105oC) |
| Seam: | Butted |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:
None
