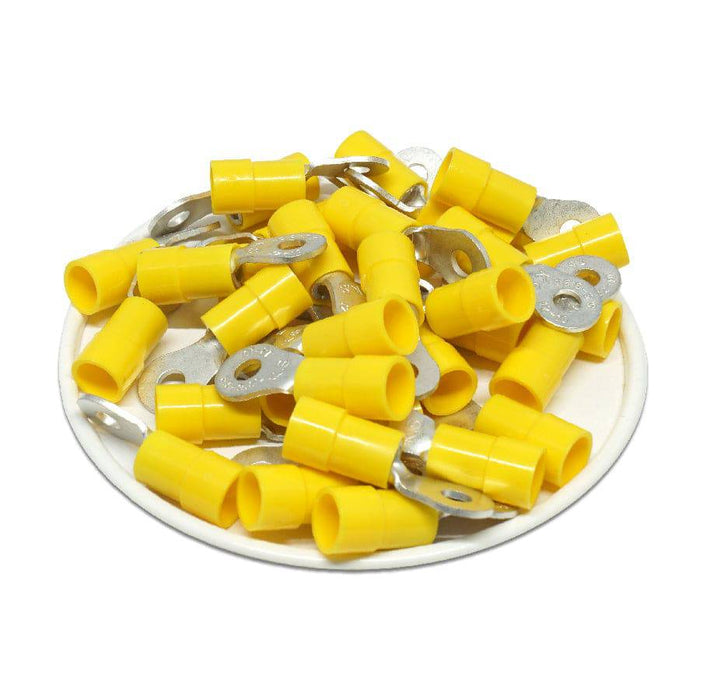

RVYL5-37 - 12 to 10 AWG Molded PVC Vinyl Insulated Ring Terminals, Easy Entry, #6 Stud, 100 Pieces
Quantity: 100 Pieces
VINYL INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Vinyl Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format.
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Stud Size: | #6 Stud |
| Color: | Yellow |
| T: | 0.8mm (0.03") |
| L: | 22.7mm (0.894") |
| F: | 6.1mm (0.24") |
| E: | 13mm (0.512") |
| W: | 7.2mm (0.283") |
| D: | 6.4mm (0.252") |
| D1: | 3.4mm (0.134") |
| D2: | 3.7mm (0.146") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Vinyl |
| Max Electrical Rating: | 600 Volts (105oC) |
| Seam: | Butted |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
