RW05008 - Spool of Ferrules - 22 AWG (0.50mm²) - 5000pcs - Orange

$175.50
SKU RW05008
Piece Quantity
Wire Ferrule Spools

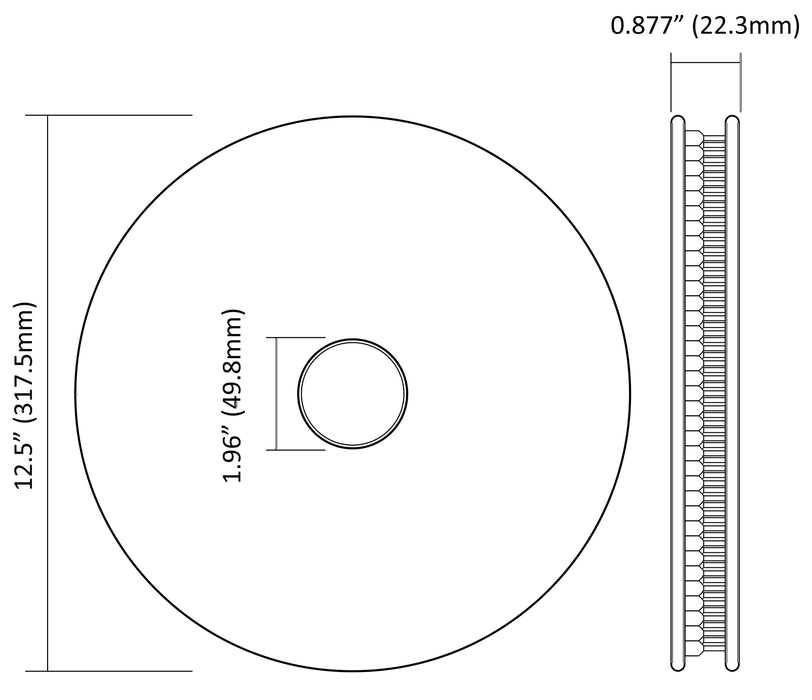

DIMENSIONS AND FEATURES
Item Size: 22 AWG TERMINAL MATERIAL: COPPER
Color: ORANGE INSULATION MATERIAL: Nylon
L1: 14/.55 MAX ELECTRICAL RATING: 105ºC 600 VOLTS
L2: 8/.32 MAX ELECTRICAL CURRENT: 18AMP
D1: 1.0/.04 CE CERTIFIED: YES
D2: 2.6/.10 ROHS COMPLIANT: YES
S1: .15/.001 INSULATOR COLLAR MELTING POINT: 221ºF
R: 3.5/.14
