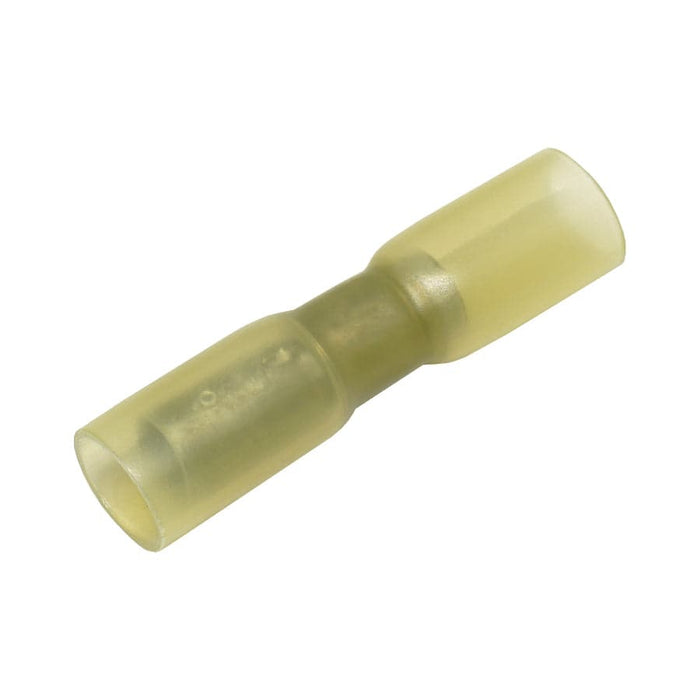

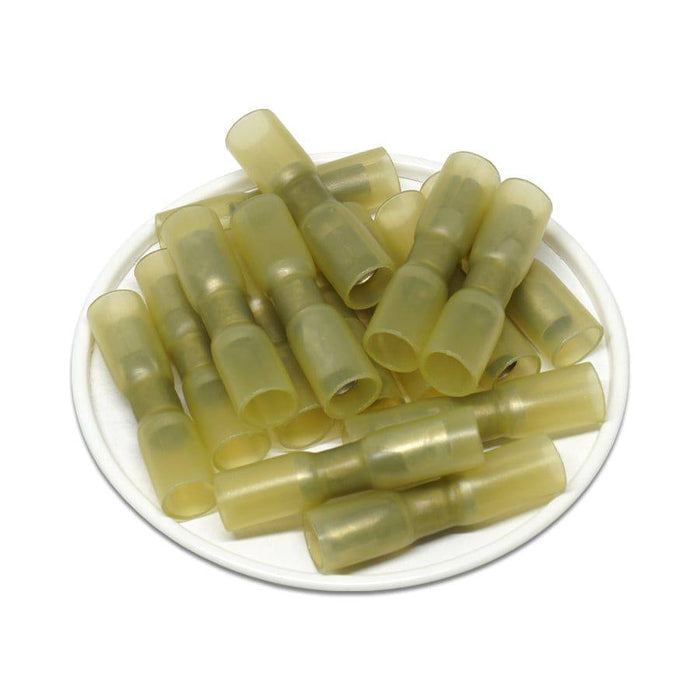

12 to 10 AWG Heat Shrink Bullet Connectors, Female, Size: 0.16", Polyethylene, Yellow - SBTF102-4
Original price
$7.84
-
Original price
$7.84
Original price
$7.84
$7.84
-
$7.84
Current price
$7.84
SKU SBTF102-4
Availability:
in stock, ready to be shipped
HEAT SHRINK BULLET CONNECTORS
Heat shrink terminals provide sealed protection against environmental extremities. They insulate, seal and protect joints from physical abuse, abrasion, water, salt, and other corrosive elements.
DIMENSIONS & FEATURES:
| Wire Range: | 12 to 10 AWG (4.00mm2 to 6.00mm2) |
| W: | 0.16" (4.0mm) |
| F: | 0.43" (11.0mm) |
| L: | 1.40" (35.6mm) |
| B: | 0.79" (20.0mm) |
| C: | 0.13" (3.4mm) |
| D: | 0.27" (6.8mm) |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Polyethylene |
| Color: | Yellow |
| Temperature Rating: | -131oF to 257oF (-55oC to 125oC) |
PRODUCT DRAWING:
