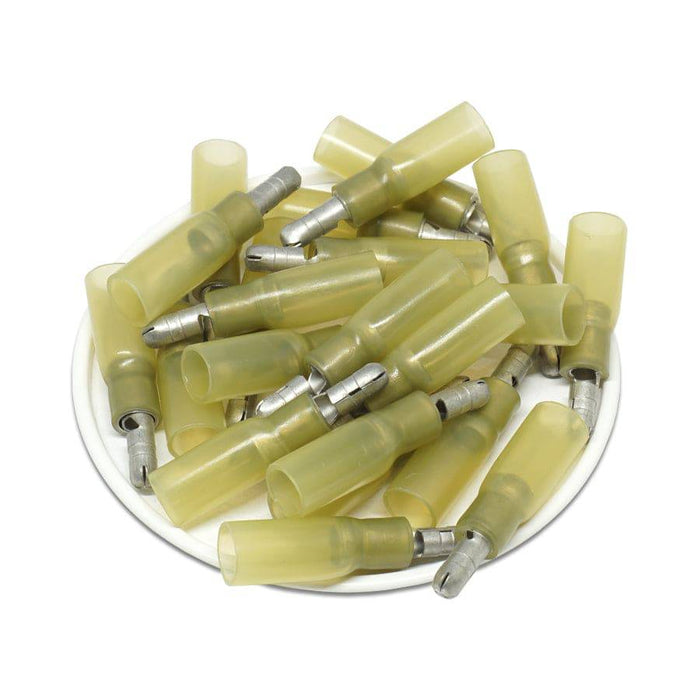

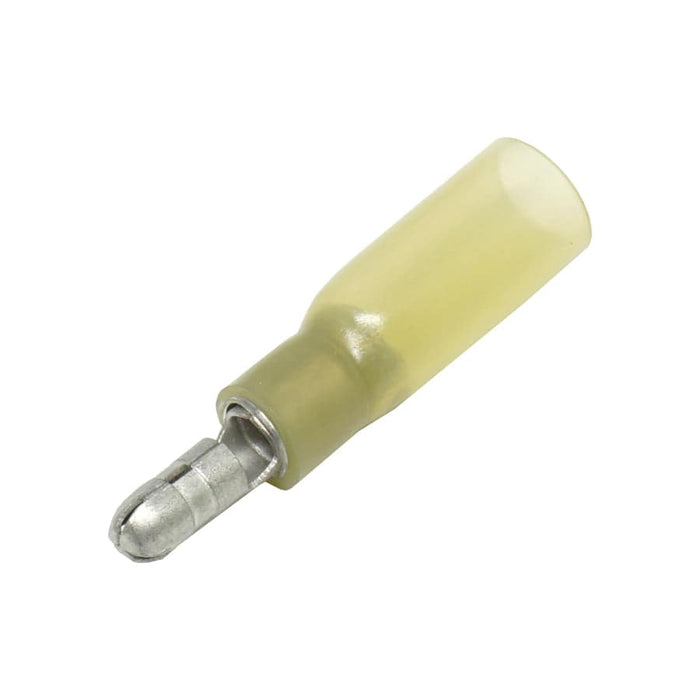

12 to 10 AWG Heat Shrink Bullet Connectors, Male, Size: 0.16", Polyethylene, Yellow - SBTM102-4

Original price $9.09 - Original price $9.09
Original price
$9.09
$9.09 - $9.09
Current price $9.09
SKU SBTM102-4
Availability:
in stock, ready to be shipped
Pack Quantity: 25 Pieces

HEAT SHRINK BULLET CONNECTORS

Heat shrink terminals provide sealed protection against environmental extremities. They insulate, seal and protect joints from physical abuse, abrasion, water, salt, and other corrosive elements.

DIMENSIONS & FEATURES:


Wire Range: 12 to 10 AWG
D: 0.27" (6.8mm)
D1: 0.13" (3.4mm)
W: 0.16" (4.0mm)
E: 0.98" (25.0mm)
L: 1.38" (35.0mm)
Terminal Material: Tin-Plated Copper
Insulation Material: Polyethylene
Color: Yellow
Temperature Rating: -131oF to 257oF (-55oC to 125oC)

Product Drawing:
