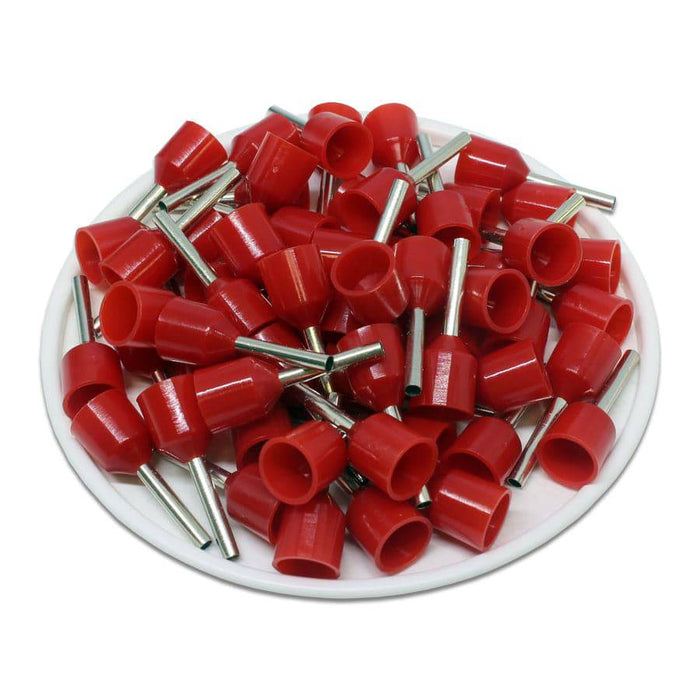

SC15010W - 16AWG (10mm Pin) Short Circuit Ferrules - Red

Original price $11.44 - Original price $11.44
Original price
$11.44
$11.44 - $11.44
Current price $11.44
SKU SC15010W
Availability:
in stock, ready to be shipped
Piece Quantity: 100 Pieces
true
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools. Short circuit ferrules provide wider polypropylene sleeves that create a greater distance between the wire and insulation sleeves. This prevents electrical arcs and potential short circuits.

Dimensions & Features:

Wire Size: 16 AWG
Color: Red
L1: 19.4mm (.76")
L2: 10mm (.39")
D: 2.1mm (.08")
D1: 1.8mm (.07")
D2: 6.8mm (.27")
Material: Tin Plated Copper
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes
Max Electrical Rating: 105°C 600 Volts
Max Electrical Current: 18A

Product Drawing:

Cross References

Cross Reference Parts:

None

Documents

Click to view product spec sheet:


Videos

Watch to see how to crimp a wire ferrule!
