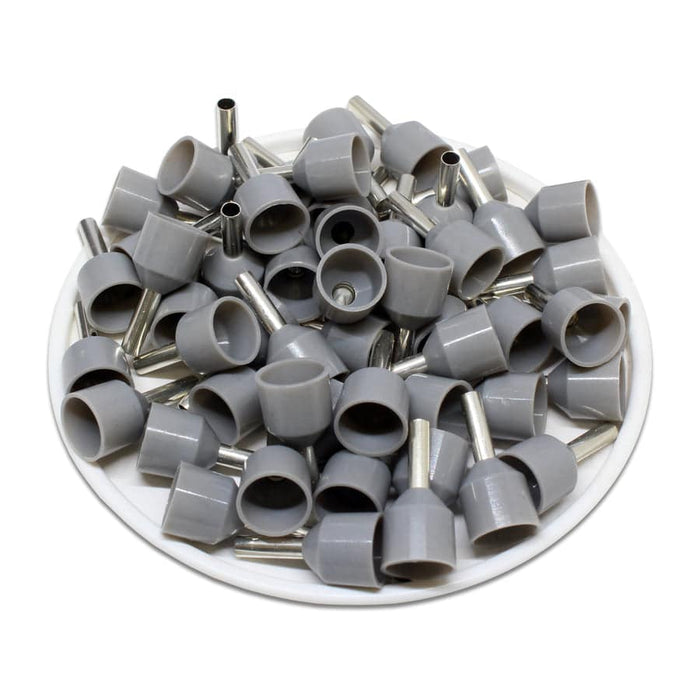

SC25008T - 14AWG (8mm Pin) Short Circuit Ferrules - Gray

Original price $10.01 - Original price $10.01
Original price
$10.01
$10.01 - $10.01
Current price $10.01
SKU SC25008T
Availability:
in stock, ready to be shipped
Piece Quantity: 100 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools. Short circuit ferrules provide wider polypropylene sleeves that create a greater distance between the wire and insulation sleeves. This prevents electrical arcs and potential short circuits.

Dimensions & Features:

Wire Size: 14 AWG
Color: Gray
L1: 17.6mm (.69")
L2: 8mm (.32")
D: 2.6mm (.39")
D1: 2.3mm (.09")
D2: 7.8mm (.31")
Material: Tin Plated Copper
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes
Max Electrical Rating: 105°C 600 Volts
Max Electrical Current: 30A

Product Drawing:

Cross References

Cross Reference Parts:

None

Documents

None available


Videos

Watch to see how to crimp a wire ferrule!
