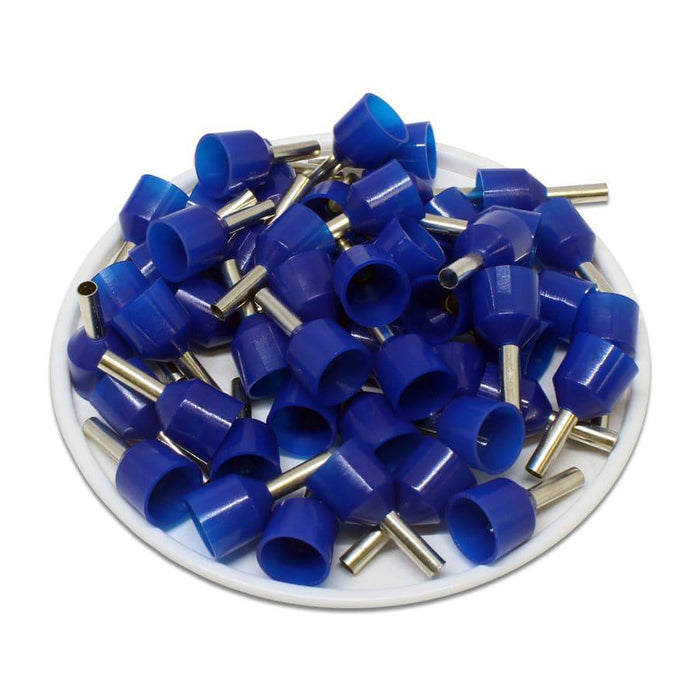

SC25008W - 14 AWG Insulated Wire Ferrules, 8mm Pin, Blue, XXL Collar, Short Circuit Protection, 100 Pieces
Original price
$10.01
-
Original price
$10.01
Original price
$10.01
$10.01
-
$10.01
Current price
$10.01
SKU SC25008W
Quantity: 100 Pieces
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools. Short circuit ferrules provide wider polypropylene sleeves that create a greater distance between the wire and insulation sleeves. This prevents electrical arcs and potential short circuits.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 14 AWG |
| Color: | Blue |
| L1: | 17.6mm (.69") |
| L2: | 8mm (.32") |
| D: | 2.6mm (.39") |
| D1: | 2.3mm (.09") |
| D2: | 7.8mm (.31") |
| Material: | Tin Plated Copper |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Rating: | 105°C 600 Volts |
| Max Electrical Current: | 30A |
Product Drawing:
Cross References
Cross Reference Parts:None
