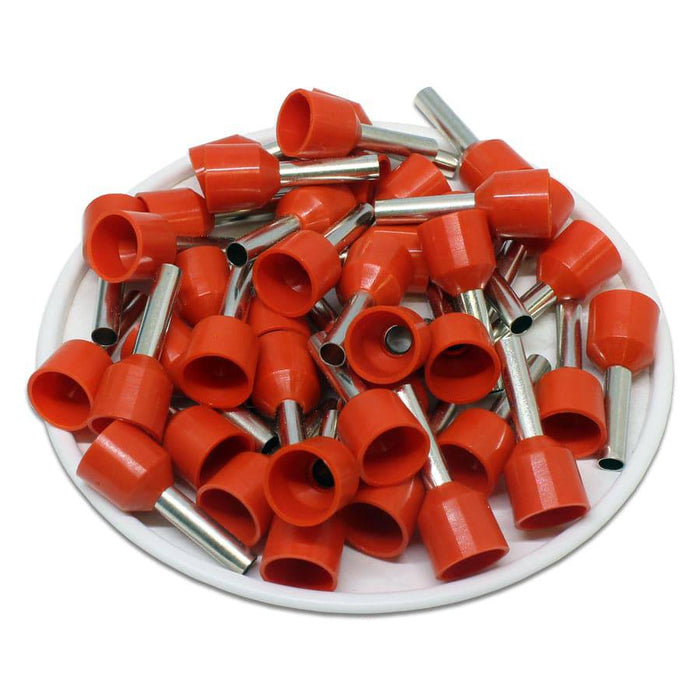

SC40012T - 12 AWG (12mm Pin) Short Circuit Ferrules - Orange

Original price $11.27 - Original price $11.27
Original price
$11.27
$11.27 - $11.27
Current price $11.27
SKU SC40012T
Availability:
in stock, ready to be shipped
Piece Quantity: 100 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools. Short circuit ferrules provide wider polypropylene sleeves that create a greater distance between the wire and insulation sleeves. This prevents electrical arcs and potential short circuits.

Dimensions & Features:

Wire Size: 12 AWG
Color: Orange
L1: 21.3mm (.84")
L2: 12mm (.47")
D: 3.3mm (.13")
D1: 2.9mm (.11")
D2: 7.8mm (.31")
Material: Tin Plated Copper
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes
Max Electrical Rating: 105°C 600 Volts
Max Electrical Current: 35A

Product Drawing:

Cross References

Cross Reference Parts:

None

Documents

None available


Videos

Watch to see how to crimp a wire ferrule!
