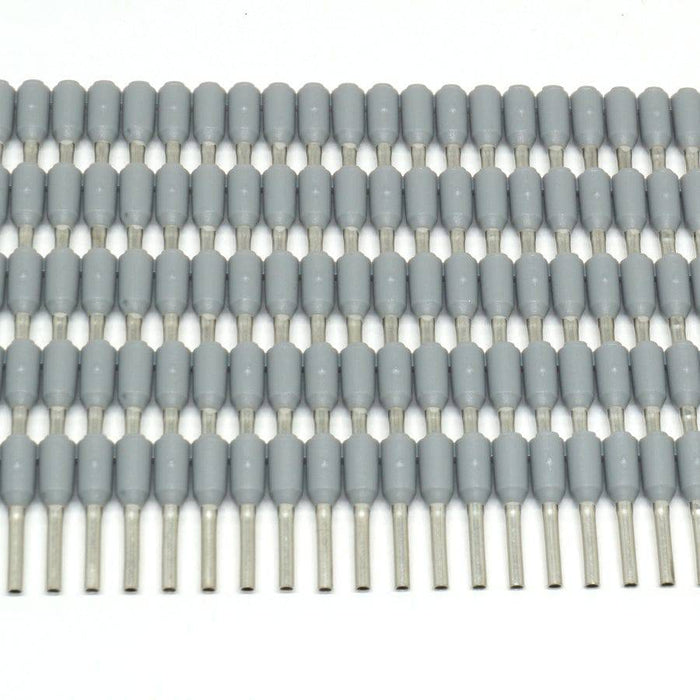

SD07508 - Strips of Ferrules - 20 AWG - Gray - 500pcs
Original price
$18.90
-
Original price
$18.90
Original price
$18.90
$18.90
-
$18.90
Current price
$18.90
SKU SD07508
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Altech Corp: 2867.0 FID1808GR
American Electrical: 1181075
AUTOMATION DIRECT: BM-00602
DigiKey: 277-2186-ND
Eclipse: 701-111
Elecdirect: FER-20-8D
Greenlee: 470/8
McMaster-Carr: 7950K85 7950K15
Panduit: FSD76-8-D
Phoenix Contact: 3200894 3200519
SPC Technology: SPC4508 84N2042
TE Connectivity: 966067-5
Thomas Betts: F2024
Tyco AMP: 966 067-5
WAGO: 216-202
Weidmuller: 9019410000
Wieland: 06.600.2127.0
ZF: V3AE0041
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Wire Size: | 20 AWG |
Color: | Gray |
L1: | 14.0mm (0.551") |
L2: | 8.0mm (0.315") |
D: | 1.57mm (0.062") |
D1: | 1.2mm (0.047") |
D2: | 2.8mm (0.110") |
UL Approved: | Yes |
CE Certfied: | Yes |
RoHS Compliant: | Yes |
Max Electrical Rating: | 105°C (221°F) - 600 Volts |
Max Electrical Current: | 17A |
Material: | Tin-Plated Copper |
Cross References
ABB: 30445501Altech Corp: 2867.0 FID1808GR
American Electrical: 1181075
AUTOMATION DIRECT: BM-00602
DigiKey: 277-2186-ND
Eclipse: 701-111
Elecdirect: FER-20-8D
Greenlee: 470/8
McMaster-Carr: 7950K85 7950K15
Panduit: FSD76-8-D
Phoenix Contact: 3200894 3200519
SPC Technology: SPC4508 84N2042
TE Connectivity: 966067-5
Thomas Betts: F2024
Tyco AMP: 966 067-5
WAGO: 216-202
Weidmuller: 9019410000
Wieland: 06.600.2127.0
ZF: V3AE0041
Documents
Videos
How to Crimp a Wire Ferrule?
