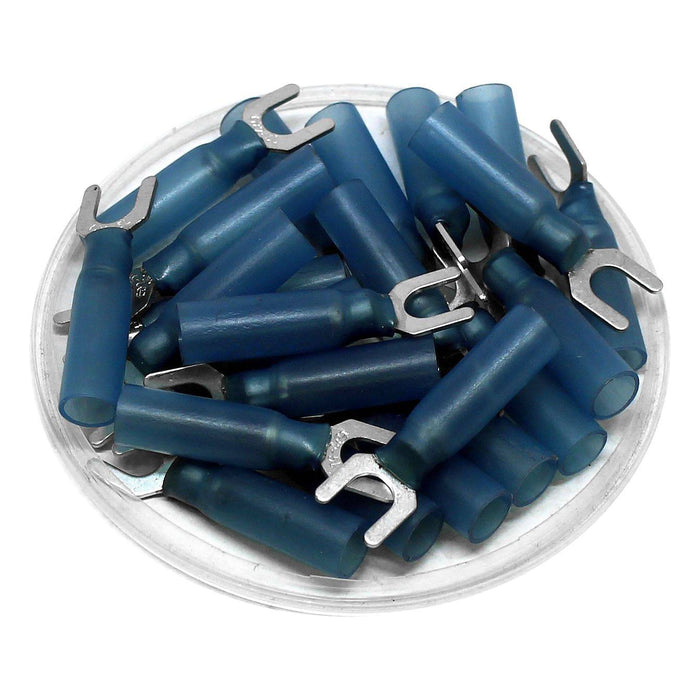

SHTL2-5 - Polyethylene Insulated Heat Shrinkable Spade Terminals - 16-14 AWG

Original price $3.66 - Original price $7.66
Original price
$7.66
$3.66 - $7.66
Current price $7.66
SKU SHTL2-5
Availability:
in stock, ready to be shipped
Availability:
Out of stock
Pack Quantity: 25 Pieces
Heat shrink terminals provide sealed protection against environmental extremities. They insulate, seal and protect joints from physical abuse, abrasion, water, salt, and other corrosive elements.

Dimensions & Features:

Wire Size: 16-14 AWG
Stud Size: #10
Color: Blue
Insulation Material: Polyethylene
Terminal Material: Tin-Plated Copper
Temperature Rating: -55oC to 100oC
Shrink Temperature: 180oC
Voltage Rating: 600 Volts
L: 28.5mm (1.12")
D2: 5.3mm (0.21")
W: 9.3mm (0.37")
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
