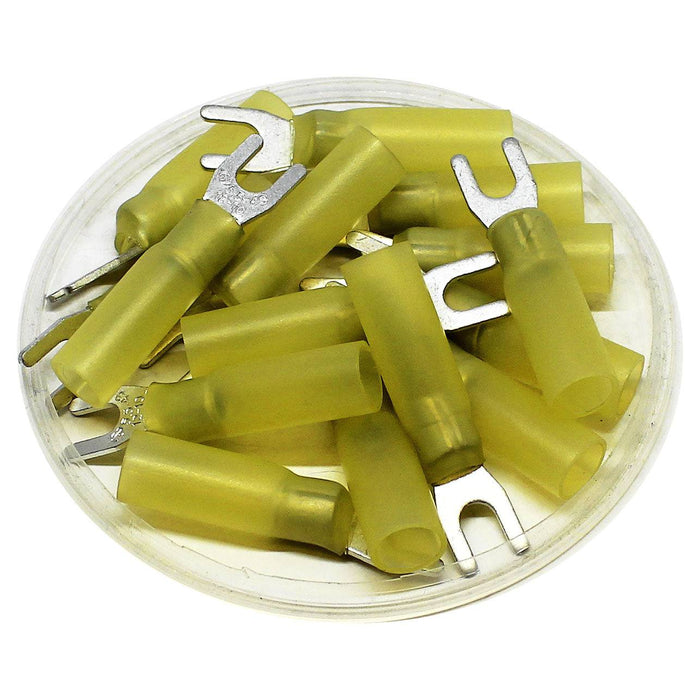

12 to 10 AWG Heat Shrink Spade Terminals, #8 Stud, Polyethylene, 25 Pieces - SHTL5-4

Sold out
Original price $3.02 - Original price $3.02
Original price
$3.02
$3.02 - $3.02
Current price $3.02
SKU SHTL5-4
Availability:
Out of stock
Pack Quantity: 10 Pieces

HEAT SHRINKABLE SPADE TERMINALS

Heat shrink insulated spade terminals are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.

DIMENSIONS & FEATURES:

Wire Size: 12 to 10 AWG
Stud Size: #8
Color: Yellow
Insulation Material: Polyethylene
Terminal Material: Tin-Plated Copper
Temperature Rating: -67°F to 221°F (-55°C to 100°C)
Voltage Rating: 600 Volts
L: 25.5mm (1.00")
D2: 4.3mm (0.17")
W: 9.0mm (0.35")
CE Certified: Yes
RoHS Compliant: Yes


DRAWING:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
