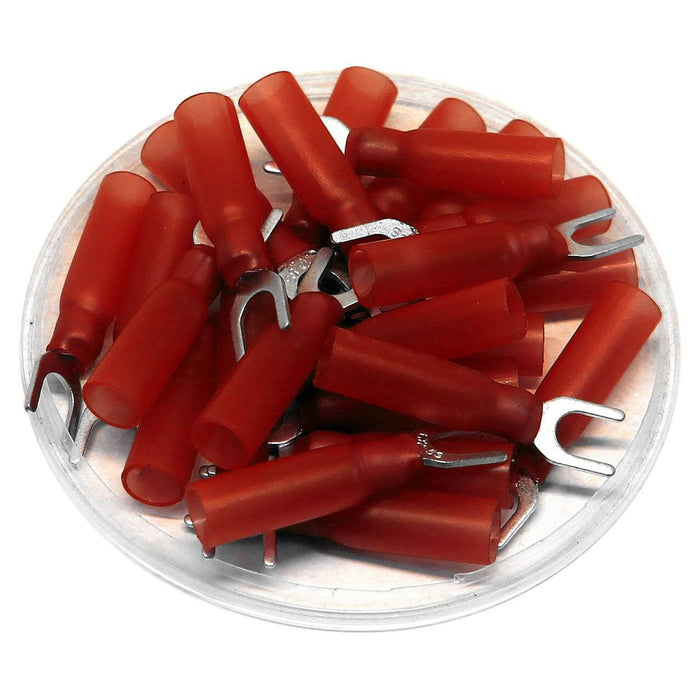

22 to 16 AWG Heat Shrink Spade Terminals, 1/4" Stud, Polyethylene, 25 Pieces - SHTS1-6

Original price $6.40 - Original price $6.40
Original price
$6.40
$6.40 - $6.40
Current price $6.40
SKU SHTS1-6
Availability:
in stock, ready to be shipped
Pack Quantity: 25 Pieces
true

HEAT SHRINKABLE SPADE TERMINALS

Heat shrink insulated spade terminals are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.

DIMENSIONS & FEATURES:

Wire Size: 22 to 16 AWG
Stud Size: 1/4"
Color: Red
Insulation Material: Polyethylene
Terminal Material: Tin-Plated Copper
Temperature Rating: -67°F to 221°F (-55°C to 100°C)
Voltage Rating: 600 Volts
L: 28.5mm (1.12")
D2: 6.4mm (0.25")
W: 9.5mm (0.37")
CE Certified: Yes
RoHS Compliant: Yes


DRAWING:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:



COMPARE TO THESE PARTS:
