22 to 8 AWG Assorted Wire Ferrules Kit, 4,800 Pieces, Carrying Case, Series D - SK4800D - Ferrules Direct

22 to 8 AWG Assorted Wire Ferrules Kit, 4,800 Pieces, Carrying Case, Series D - SK4800D

$99.00 - $99.00
$99.00
$99.00 - $99.00
$99.00
SKU SK4800D
Availability:
in stock, ready to be shipped
Quantity: 1 Kit
true

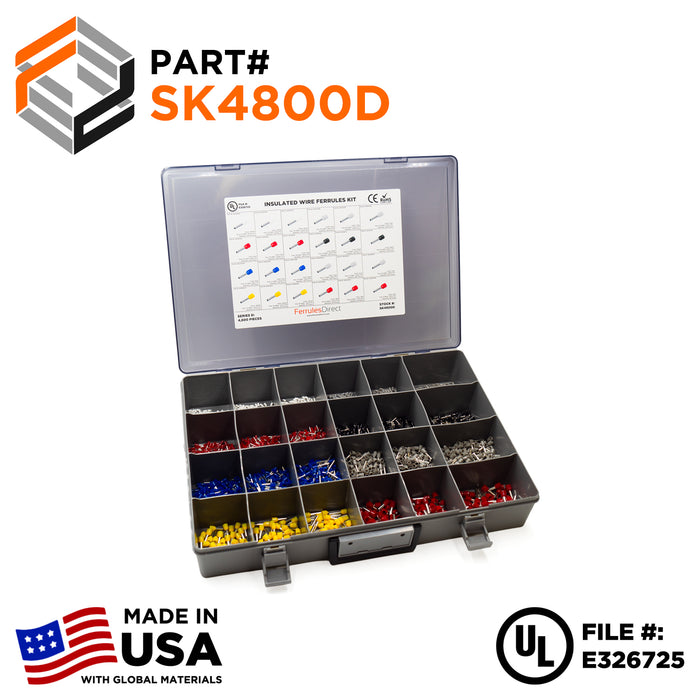

WIRE FERRULES ASSORTMENT KIT

Ferrules Direct proudly offers our SK4800D custom built assortment starter kit. Assembled inside of a sturdy American-made carrying kit box, this is the ideal assortment kit for the working electrician that needs something to withstand daily use.

  • Wide Range (28 to 8 AWG) ✓
  • UL Approved Ferrules ✓
  • Made in USA (with global materials)  ✓
  • Durable Kit Box ✓
  • High Gloss Identification Label ✓



KIT CONTENTS & INFO:

    STOCK #: COLOR SIZE:  PIN LENGTH:
    		 QUANTITY:
    AD05005 WHITE 22 AWG 5MM 250 PIECES
    AD05008 WHITE 22 AWG 8MM 250 PIECES
    AD05012 WHITE 22 AWG 12MM 250 PIECES
    AD07508 GRAY 20 AWG 8MM 250 PIECES
    AD07510 GRAY 20 AWG 10MM 250 PIECES
    AD07512 GRAY 20 AWG 12MM 250 PIECES
    AD10008 RED 18 AWG 8MM 250 PIECES
    AD10012 RED 18 AWG 12MM 250 PIECES
    AD10018 RED 18 AWG 18MM 250 PIECES
    AD15008 BLACK 16 AWG 8MM 250 PIECES
    AD15012 BLACK 16 AWG 12MM 250 PIECES
    AD15018 BLACK 16 AWG 18MM 250 PIECES
    AW25008 BLUE 14 AWG 8MM 250 PIECES
    AW25012 BLUE 14 AWG 12MM 250 PIECES
    AW25018* BLUE 14 AWG 18MM 250 PIECES
    AW40009 GRAY 12 AWG 9MM 250 PIECES
    AW40012 GRAY 12 AWG 12MM 250 PIECES
    AW40018 GRAY 12 AWG 18MM 250 PIECES
    AD60010* YELLOW 10 AWG 10MM 50 PIECES
    AD60012 YELLOW 10 AWG 12MM 50 PIECES
    AD60018 YELLOW 10 AWG 18MM 50 PIECES
    AD100012 RED 8 AWG 12MM 50 PIECES
    AD100015* RED 8 AWG 15MM 50 PIECES
    AD100018 RED 8 AWG 18MM 50 PIECES

    *Not currently UL approved.

    Additional Information:

    Ferrules (also known as bootlace ferrules, wire ferrules, or aderendhülsen) are small metal tubes, commonly made from tin plated copper. They come in various sizes to accommodate different wire gauges. They are carefully slipped over stripped wire and then permanently crimped into place. Once the ferrule is crimped, the wire is able to be inserted into a connector. The primary purpose of a ferrule is to prevent wire strands from fraying, breaking, or unraveling. The reduced dimensions of a ferrule allow the user to effectively terminate wires on high density terminal blocks or very narrow areas.
