SK502 - Mini Kit - Single Insulated Ferrules - T Series - 24-10 AWG


Insulated Wire Ferrule Mini Starter Kit

  • Description: These convenient Mini Starter Kits contain a wide variety of Single Insulated Wire Ferrules to suit all your wire termination needs
  • Features:
    • Overall Inside Dimensions: 7.3" x 3.4" x 1.3"
    • Material: Translucent Polypropylene
    •  Superior resistance to chemicals, solvents and gasoline
    • Great for product storage and protection

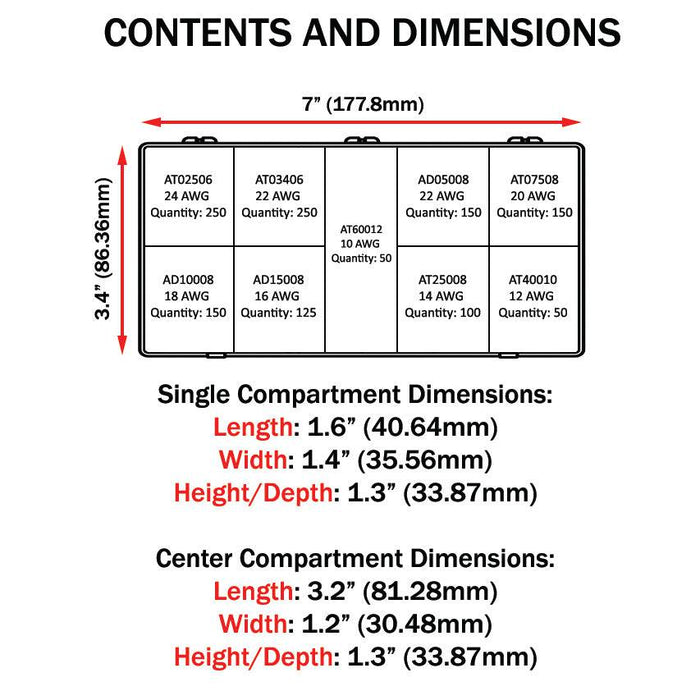

Contents of Kit - Quick Refill Information
Stock # Size Stripping Length Quantity
AT02506 0.25mm2 (24AWG) 6mm 250
AT03406 0.34mm2 (22AWG) 6mm 250
AD05008 0.50mm2 (22AWG) 8mm 150
AT07508 0.75mm2 (20AWG) 8mm 150
AD10008 1.00mm2 (18AWG) 8mm 150
AD15008 1.50mm2 (16AWG) 8mm 125
AT25008 2.50mm2 (14AWG) 8mm 100
AT40010 4.00mm2 (12AWG) 10mm 50
AT60012 6.00mm2 (10AWG) 12mm 50
