SK601HX - 22 to 10 AWG Basic Wire Ferrules Kit + FD2810HX Tool, 2,850 Pieces, Series D, 1 Kit
Original price
$153.00
-
Original price
$153.00
Original price
$153.00
$153.00
-
$153.00
Current price
$153.00
SKU SK601HX
Quantity: 1 Kit
Availability:
in stock, ready to be shipped

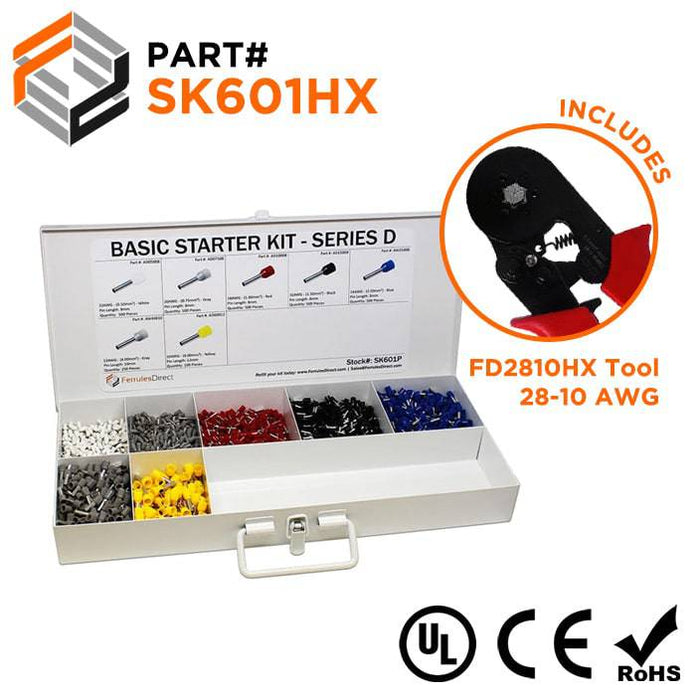

SK601 Basic Wire Ferrules Kit with FD2810HX Tool
Our basic wire ferrules starter kit comes with a 2,850-piece selection of single insulated wire ferrules from 22 to 10 AWG in the "Series D" color sequence. Also included is the FD2810HX ratcheting crimping tool that terminates ferrules from 28 AWG to 10 AWG in the hexagonal crimping shape. All of this is housed inside of a heavy duty powder coated steel box with latch and easy-to-carry handle. Kit box dimensions: 14"x6"x1.5" (LxWxH)
| Contents of Kit - Quick Refill Information | ||||
| Stock # | Color | Size | Stripping Length | Quantity |
| AD05008 | White | 0.50mm2 (22AWG) | 8mm | 500 |
| AD07508 | Gray | 0.75mm2 (20AWG) | 8mm | 500 |
| AD10008 | Red | 1.00mm2 (18AWG) | 8mm | 500 |
| AD15008 | Black | 1.50mm2 (16AWG) | 8mm | 500 |
| AW25008 | Blue | 2.50mm2 (14AWG) | 8mm | 500 |
| AW40010 | Gray | 4.00mm2 (12AWG) | 10mm | 250 |
| AD60012 | Yellow | 6.00mm2 (10AWG) | 12mm | 100 |
| FD2810HX | Red/Blue Handles | 28 to 10 AWG | - | 1 |
| ESB08W | White | 8 Compartment Box | - | 1 |
Need more ferrules or a wider variety? Want us to make you a custom kit? Be sure to check out our complete kit selection for more great options!
