SK700UL - 22 to 10 AWG Wire Ferrules Deluxe Kit + FD2810UL Tool, 3,450-Pieces, Series W, 1 Kit
Original price
$225.00
-
Original price
$225.00
Original price
$225.00
$225.00
-
$225.00
Current price
$225.00
SKU SK700UL
Quantity: 1 Kit
Availability:
in stock, ready to be shipped

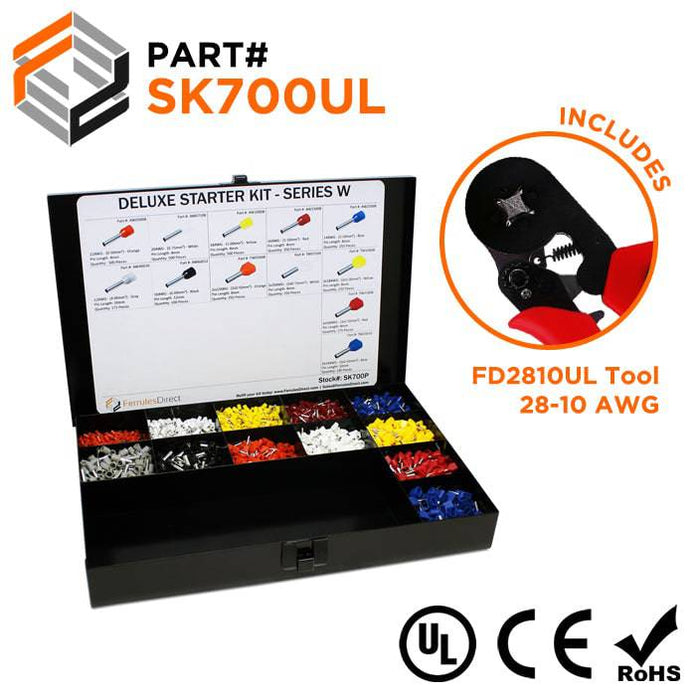

SK700 Deluxe Wire Ferrules Kit with FD2810UL
Our deluxe wire ferrules starter kit comes with a 3,450-piece selection of single single insulated wire ferrules from 22 to 10 AWG and twin wire ferrules from 22 to 14 AWG in the "Series W" color sequence. Also included is the FD2810UL self-adjusting ratcheting crimping tool that terminates ferrules from 28 AWG to 10 AWG in the square crimping shape. All of this is housed inside of a heavy duty powder coated steel box with latch. Kit box dimensions: 13"x7"x1.5" (LxWxH)
| Contents of Kit - Quick Refill Information | ||||
| Stock # | Color | Size | Stripping Length | Quantity |
| Single Insulated Ferrules | ||||
| AW05008 | Orange | 0.50mm2 (22AWG) | 8mm | 500 |
| AW07508 | White | 0.75mm2 (20AWG) | 8mm | 500 |
| AW10008 | Yellow | 1.00mm2 (18AWG) | 8mm | 500 |
| AW15008 | Red | 1.50mm2 (16AWG) | 8mm | 350 |
| AW25008 | Blue | 2.50mm2 (14AWG) | 8mm | 250 |
| AW40010 | Gray | 4.00mm2 (12AWG) | 10mm | 200 |
| AW60012 | Black | 6.00mm2 (10AWG) | 12mm | 100 |
| Twin Wire Ferrules | ||||
| TW05008 | Orange | 2x0.50mm2 (2x22AWG) | 8mm | 250 |
| TW07508 | White | 2x0.75mm2 (2x20AWG) | 8mm | 250 |
| TW10008 | Yellow | 2x1.00mm2 (2x18AWG) | 8mm | 250 |
| TW15008 | Red | 2x1.50mm2 (2x16AWG) | 8mm | 200 |
| TW25010 | Blue | 2x2.50mm2 (2x14AWG) | 10mm | 100 |
Box & Tool Information
| ESB13P | Black | 13 Compartments | -- | 1 |
| FD2810UL | Red/Black | 28 to 10 AWG | -- | 1 |
