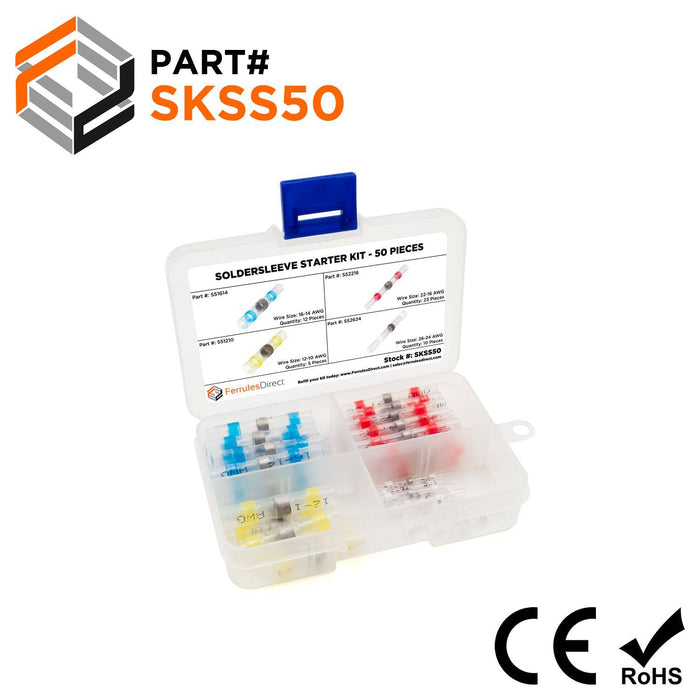

26-10 AWG Heat Shrink Solder Seal Connectors Mini Kit, 50 Pieces, IP67 Waterproof - SKSS50

Original price $5.75 - Original price $5.75
Original price
$5.75
$5.75 - $5.75
Current price $5.75
SKU SKSS50
Availability:
in stock, ready to be shipped

HEAT SHRINK SOLDER SEAL CONNECTORS


Ferrules Direct's SKSS50 solder seal mini kit is a pocket sized compact kit with a small variety of solder seals ranging from 26 through 10 AWG, to meet your soldering demands. Need a larger assortment? Be sure to check out our additional kits!

SPECIFICATIONS:

  • Connector Working Temperature: -67°F - 257°F (-55°C - 125°C)
  • Minimum Shrinking Temperature: 175°F (79.44°C)
  • Maximum Shrinking Temperature: >320°F (>160°C)
  • Solder Seal Melting Temp (Minimum): 280°F (137.77°C)
  • Solder Seal Melting Temp (Maximum): 320°F (160°C)
  • Waterproof Level: IP67
  • Dielectric Strength: 1,000v

DETAILS:

  • One step solder-and-seal process. No crimping tools required.

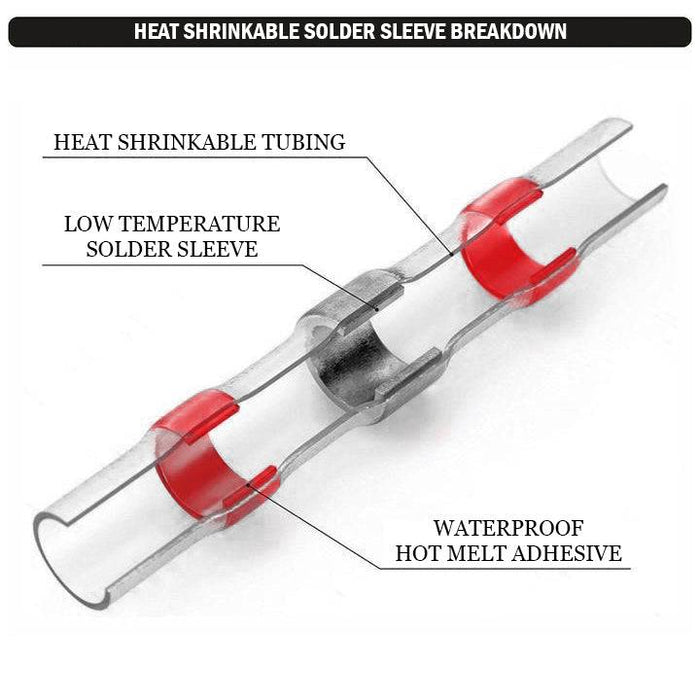

  • Dual-wall design: Outer polyolefin with heat activated adhesive and solder interior.
  • 2:1 shrinking ratio. Ideal for a wide variety of applications (automotive, marine, etc).
  • Connectors are color coded for easy identification.
  • Resistant to stretch and vibration.
  • Kit includes high quality label of easy identification.
  • RoHS & CE Compliant.
  • High quality and backed by our quality guarantee since 1995.


KIT CONTENTS:

26-24 AWG WHITE 10 PIECES PART #: SS2624-200J
22-16 AWG RED
23 PIECES PART #: SS2216-150J
16-14 AWG BLUE
12 PIECES PART #: SS1614-100J
12-10 AWG YELLOW
15 PIECES PART #: SS1210-100J
