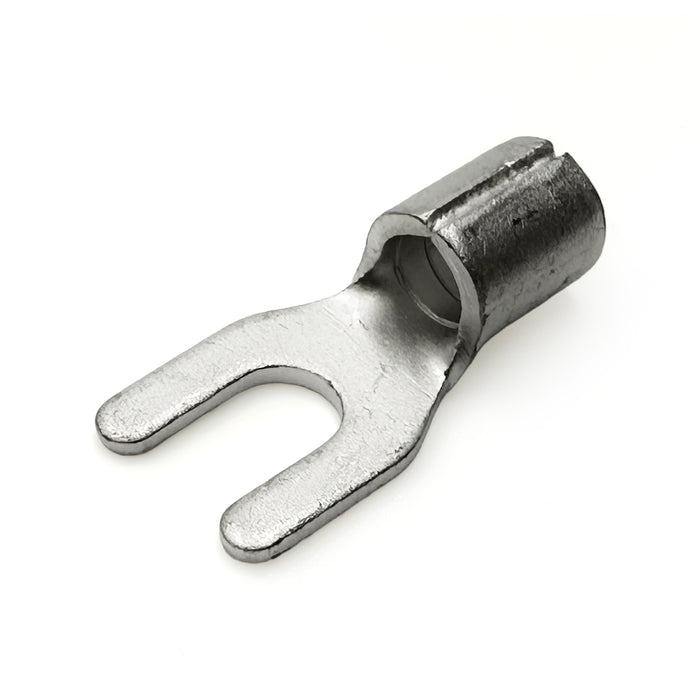

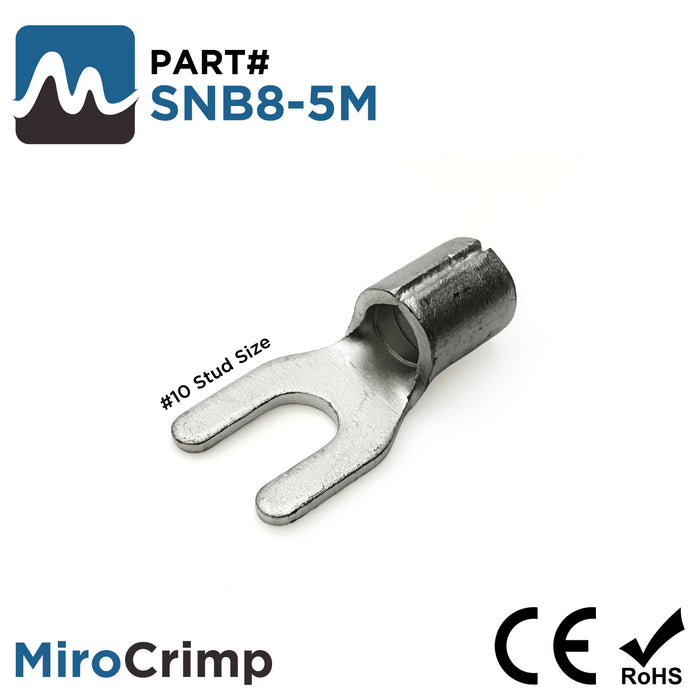

SNB8-5M - 8 AWG Non Insulated Spade Terminals, #10 Stud, 25 Pieces
Sold out
Original price
$6.60
-
Original price
$6.60
Original price
$6.60
$6.60
-
$6.60
Current price
$6.60
SKU SNB8-5M
Quantity: 25 Pieces
Availability:
Out of stock
NON INSULATED SPADE TERMINALS
Non-insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength.
Dimensions & Features:
| Wire Size: | 8 AWG |
| Seam: | Brazed |
| Stud Size: | #10 |
| Terminal Material: | Tin-Plated Copper |
| Max Electrical Current: | 70AMP |
| T: | 1.2mm (0.04") |
| L: | 23.9mm (0.94") |
| F: | 8.5mm (0.33") |
| E: | 8.7mm (0.34") |
| W: | 11.0mm (0.433") |
| D: | 7.2mm (0.28") |
| D1: | 4.5mm (0.17") |
| D2: | 5.2mm (0.20") |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
