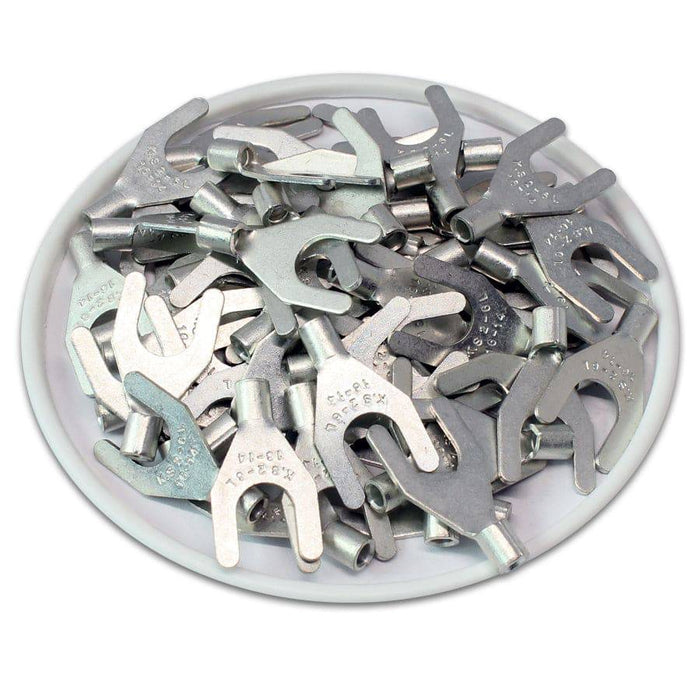

16-14 AWG Non Insulated Spade Terminals, 1/4" Stud, UL Approved, 100 Pieces - SNBL2-6
Original price
$14.26
-
Original price
$14.26
Original price
$14.26
$14.26
-
$14.26
Current price
$14.26
SKU SNBL2-6
Quantity: 100 Pieces
Availability:
in stock, ready to be shipped
NON INSULATED SPADE TERMINALS
Non-insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength.
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Stud Size: | 1/4" Stud |
| T: | 0.75mm (0.03") |
| L: | 22mm (0.87") |
| F: | 11mm (0.43") |
| E: | 4.8mm (0.19") |
| W: | 12mm (0.47") |
| D: | 4.1mm (0.16") |
| D1: | 2.3mm (0.09") |
| D2: | 6.4mm (0.25") |
| Seam: | Brazed |
| Terminal Material: | Tin-Plated Copper |
| Max Amp Rating: | 30A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
