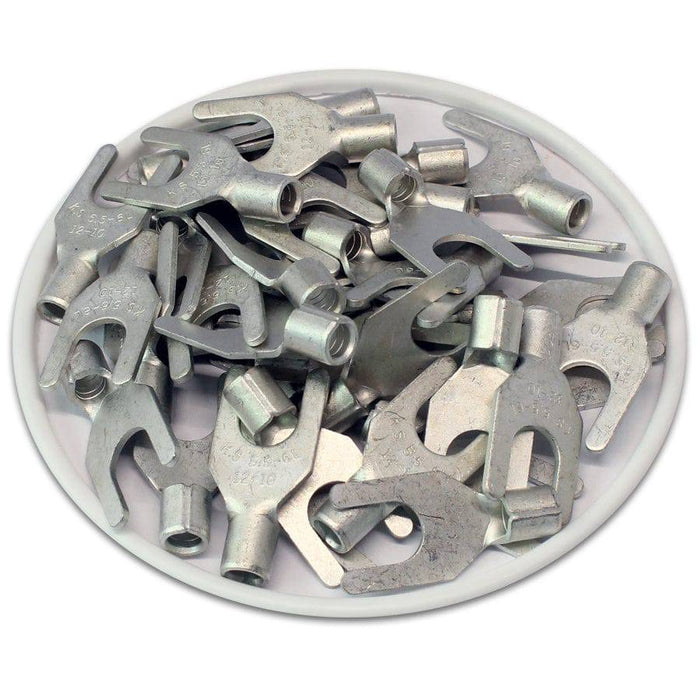

12-10 AWG Non Insulated Spade Terminals, 1/4" Stud, UL Approved, 100 Pieces - SNBL5-6
Original price
$24.28
-
Original price
$24.28
Original price
$24.28
$24.28
-
$24.28
Current price
$24.28
SKU SNBL5-6
Availability:
in stock, ready to be shipped
NON INSULATED SPADE TERMINALS
Non-insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength.
Dimensions & Features:
| Wire Size: | 12-10 AWG |
| Stud Size: | 1/4" Stud |
| T: | 0.75mm (0.03") |
| L: | 24.5mm (0.96") |
| F: | 12mm (0.47") |
| E: | 6mm (0.24") |
| W: | 12mm (0.47") |
| D: | 5.6mm (0.22") |
| D1: | 3.4mm (0.13") |
| D2: | 6.4mm (0.25") |
| Seam: | Brazed |
| Terminal Material: | Tin-Plated Copper |
| Max Amp Rating: | 50A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
