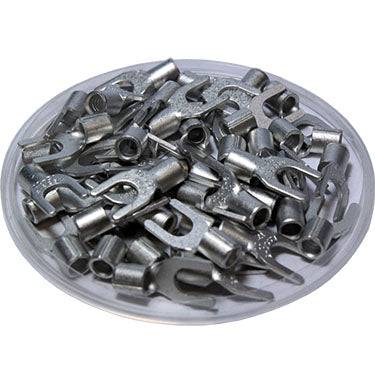

SNBLL1-3.7 - Non Insulated Spade Terminal - 22-16AWG

$6.83
SKU SNBLL1-37
Piece Quantity

PRODUCT DESCRIPTION

Non-insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength.

DIMENSIONS AND FEATURES
T: 0.75mm (0.03") Wire Range: 22-16 AWG
L: 16mm (0.63") Seam: Brazed
F: 6.5mm (0.26") Stud Size: #6
E: 4.8mm (0.19") Material: Tin-Plated Copper
W: 7.2mm (0.28") Max Electrical Current: 18AMP
D: 3.4mm (0.13") UL Recognized: Yes
D1: 1.7mm (0.07") CE Certified: Yes
D2: 3.7mm (0.15") RoHS Compliant: Yes

TECHNICAL DRAWING

Cross Reference Parts:

3M: M18-6FX
Burndy: T18-6F
Phoenix Contact: 3240138

Click to view data sheet
