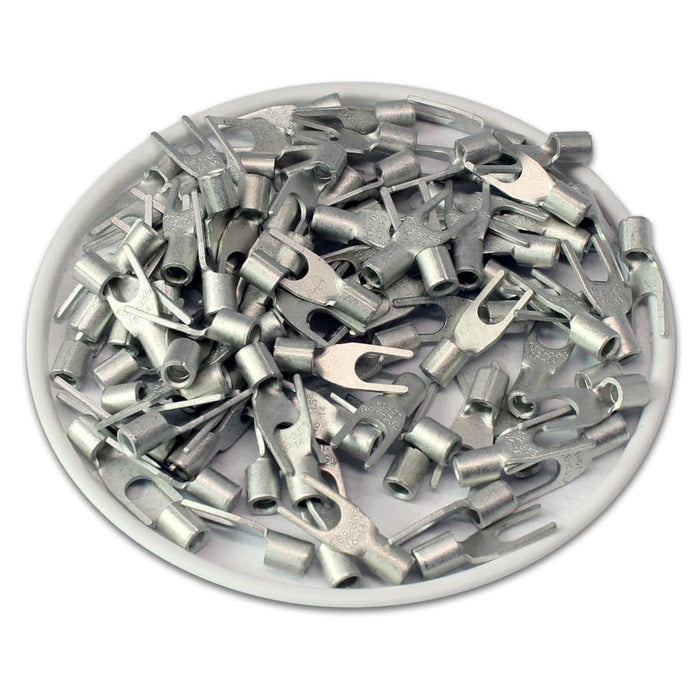

SNBS2-37 - Non Insulated Brazed Spade Terminals - 16-14 AWG - #6 Stud

Original price $7.73 - Original price $7.73
Original price
$7.73
$7.73 - $7.73
Current price $7.73
SKU SNBS2-37
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
Non-insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength.

Dimensions & Features:

Wire Size: 16-14 AWG
Stud Size: #6 Stud
T: 0.75mm (0.03")
L: 16mm (0.63")
F: 6.5mm (0.26")
E: 4.8mm (0.19")
W: 5.7mm (0.22")
D: 4.1mm (0.16")
D1: 2.3mm (0.09")
D2: 3.7mm (0.15")
Seam: Brazed
Terminal Material: Tin-Plated Copper
Max Amp Rating: 30A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:



Cross References

Cross Reference Parts:
None
