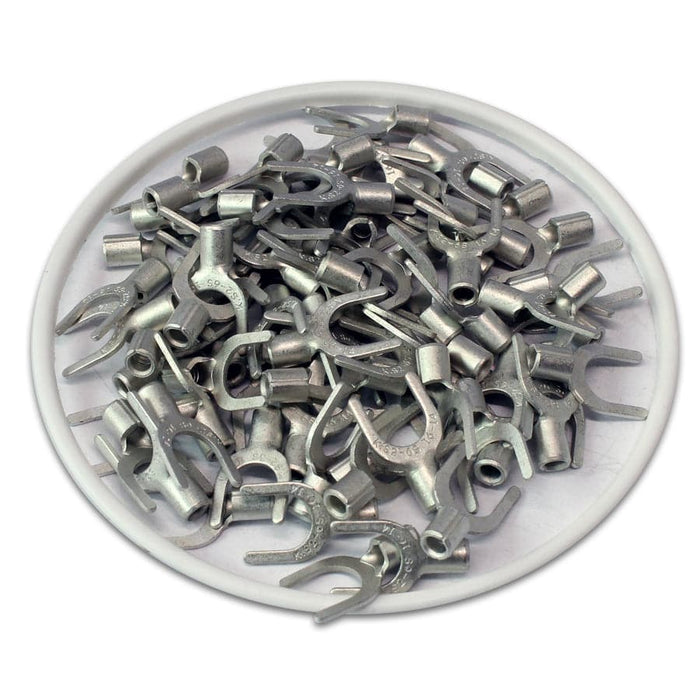

16-14 AWG Non Insulated Spade Terminals, 1/4" Stud, UL Approved, 100 Pieces - SNBS2-6

Original price $8.97 - Original price $8.97
Original price
$8.97
$8.97 - $8.97
Current price $8.97
SKU SNBS2-6
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces

NON INSULATED SPADE TERMINALS

Non-insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength.


Dimensions & Features:

Wire Size: 16-14 AWG
Stud Size: 1/4" Stud
T: 0.75mm (0.03")
L: 16mm (0.63")
F: 6.5mm (0.26")
E: 4.8mm (0.19")
W: 9.3mm (0.37")
D: 4.1mm (0.16")
D1: 2.3mm (0.09")
D2: 6.4mm (0.25")
Seam: Brazed
Terminal Material: Tin-Plated Copper
Max Amp Rating: 30A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:


Cross References

Cross Reference Parts:
None
