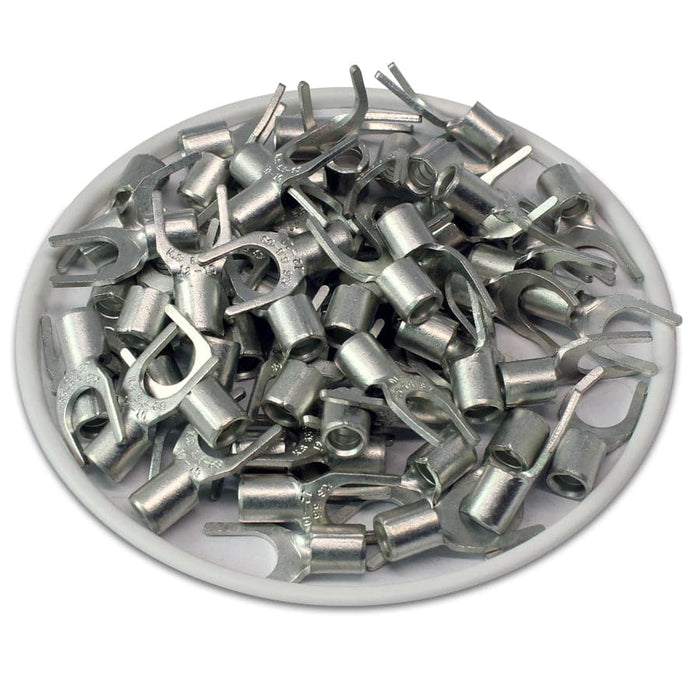

SNBS5-6 - Non Insulated Brazed Spade Terminals - 12-10 AWG - 1/4" Stud

Original price $15.16 - Original price $15.16
Original price
$15.16
$15.16 - $15.16
Current price $15.16
SKU SNBS5-6
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
Non-insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength.

Dimensions & Features:

Wire Size: 12-10 AWG
Stud Size: 1/4" Stud
T: 1mm (0.04")
L: 18.5mm (0.73")
F: 7mm (0.28")
E: 6mm (0.24")
W: 9mm (0.35")
D: 5.6mm (0.22")
D1: 3.4mm (0.13")
D2: 6.4mm (0.25")
Seam: Brazed
Terminal Material: Tin-Plated Copper
Max Amp Rating: 50A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:



Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
