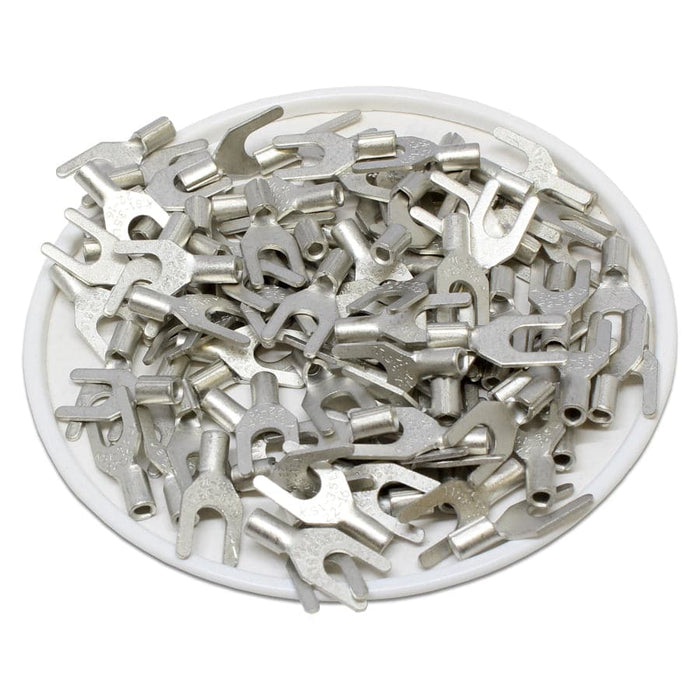

22-16 AWG Non Insulated Spade Terminals, #6 Stud, UL Approved, 100 Pieces - SNLL1-37

Original price $6.60 - Original price $6.60
Original price
$6.60
$6.60 - $6.60
Current price $6.60
SKU SNLL1-37
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces

NON INSULATED SPADE TERMINALS

Non-insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength.


Dimensions & Features:

Wire Size: 22-16 AWG
Seam: Butted
Stud Size: #6
Terminal Material: Tin-Plated Copper
Max Electrical Current: 18AMP
T: 0.7mm (0.03")
L: 16.0mm (0.63)")
F: 6.5mm (0.26")
E: 4.8mm (0.19")
W: 7.2mm (0.28")
D: 3.4mm (0.13")
D1: 1.7mm (0.07")
D2: 3.7mm (0.15")
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
Tyco AMP: 36195
