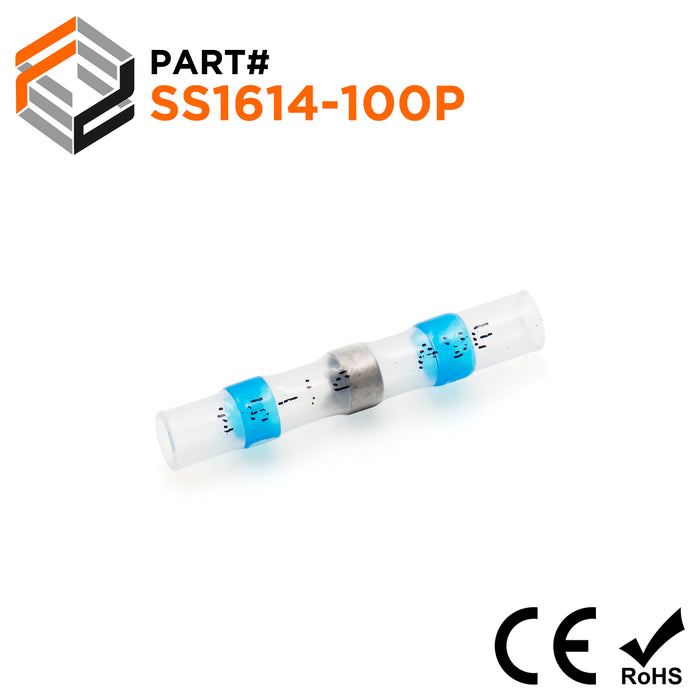

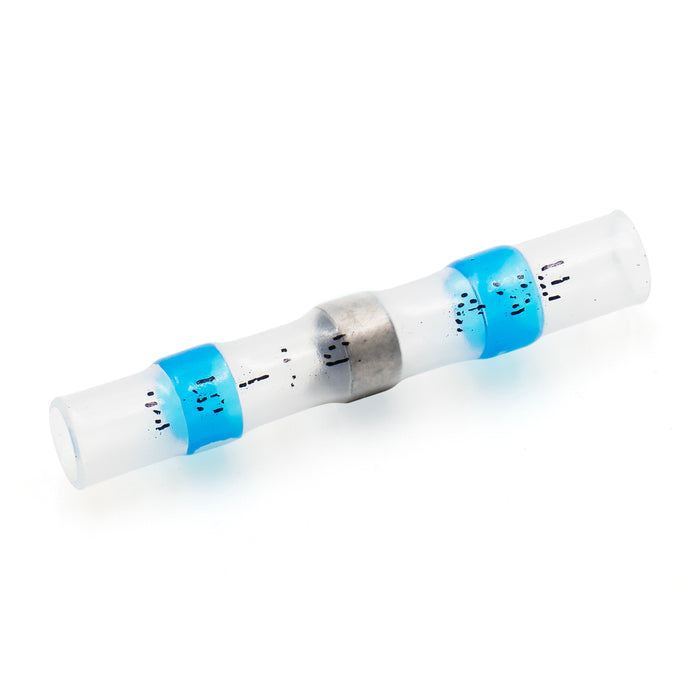

SS1614-100P - 16 to 14 AWG Heat Shrink Solder Sleeves, With Printing, Blue, 100 Pieces
Original price
$12.10
-
Original price
$12.10
Original price
$12.10
$12.10
-
$12.10
Current price
$12.10
SKU SS1614-100P
Quantity: 100 Pieces
Availability:
in stock, ready to be shipped
HEAT SHRINK SOLDER SLEEVES
Heat shrink solder sleeves provide sealed protection against environmental extremities. They insulate, seal and protect joints from physical abuse, abrasion, water, salt, and other corrosive elements.

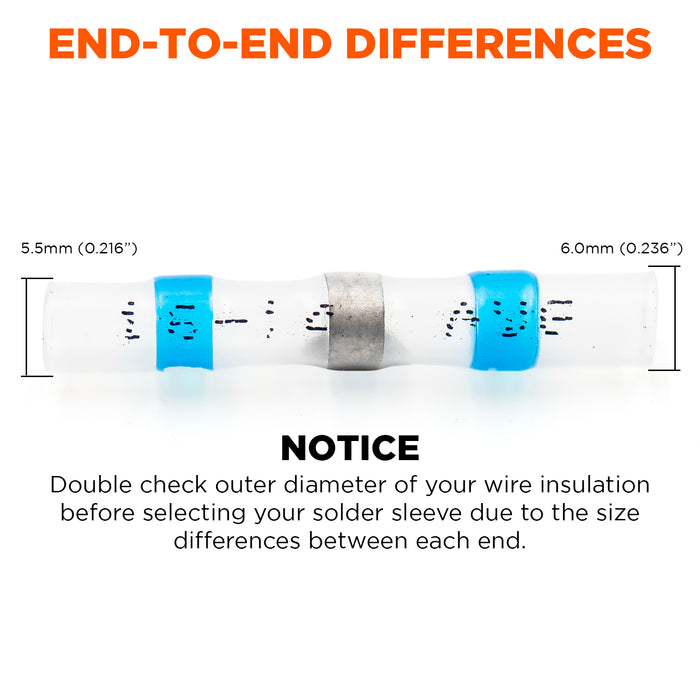

**Please double check the outer diameter of your wire insulation before selecting your solder sleeves to account for size difference on each side**
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Color: | Blue |
| L: | 40mm ± 1.5 (1.57") |
| D: | 4.5mm (0.18") |
| D1: | 5.2mm (0.20") |
| Solder Ring Material: | Low Temperature Tin Alloy |
| Insulation Material: | Polyolefin |
| Temperature Rating: | -55°C to 125°C |
Product Drawing:
Cross References
Cross Reference Parts:
None
