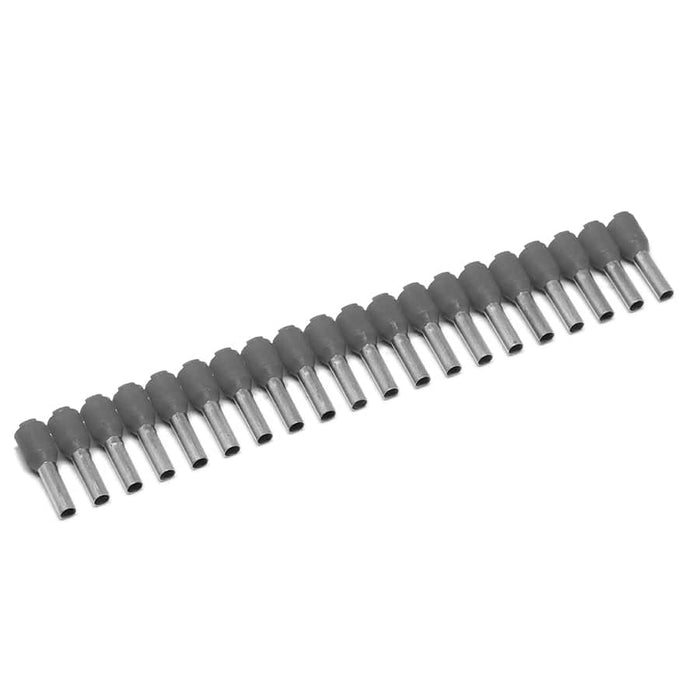

ST25008 - Strips of Ferrules - 14 AWG - Gray - 500pcs

Original price $0.99 - Original price $18.90
Original price
$18.90
$0.99 - $18.90
Current price $18.90
SKU ST25008
Availability:
in stock, ready to be shipped
Availability:
Out of stock
Piece Quantity: 500 Pieces

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

***NOW SOLD IN 500-PIECE PACKAGES (10 STRIPS OF 50 PIECES). FOR CUSTOMERS WITH AVANTI TOOLS, ADJUSTMENT TO FERRULE STRIPS MIGHT BE NECESSARY BEFORE LOADING INSIDE CARTRIDGE***


Dimensions & Features:

Wire Size: 14 AWG
Color: Gray
Material: Tin Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 30A
L1: 15.5mm (0.61")
L2: 8.0mm (0.31")
D: 2.5mm (0.09")
D1: 2.2mm (0.08")
D2: 4.2mm (0.16")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References:
Crimp Supply: 13A14005

Cross Reference Parts:

None
